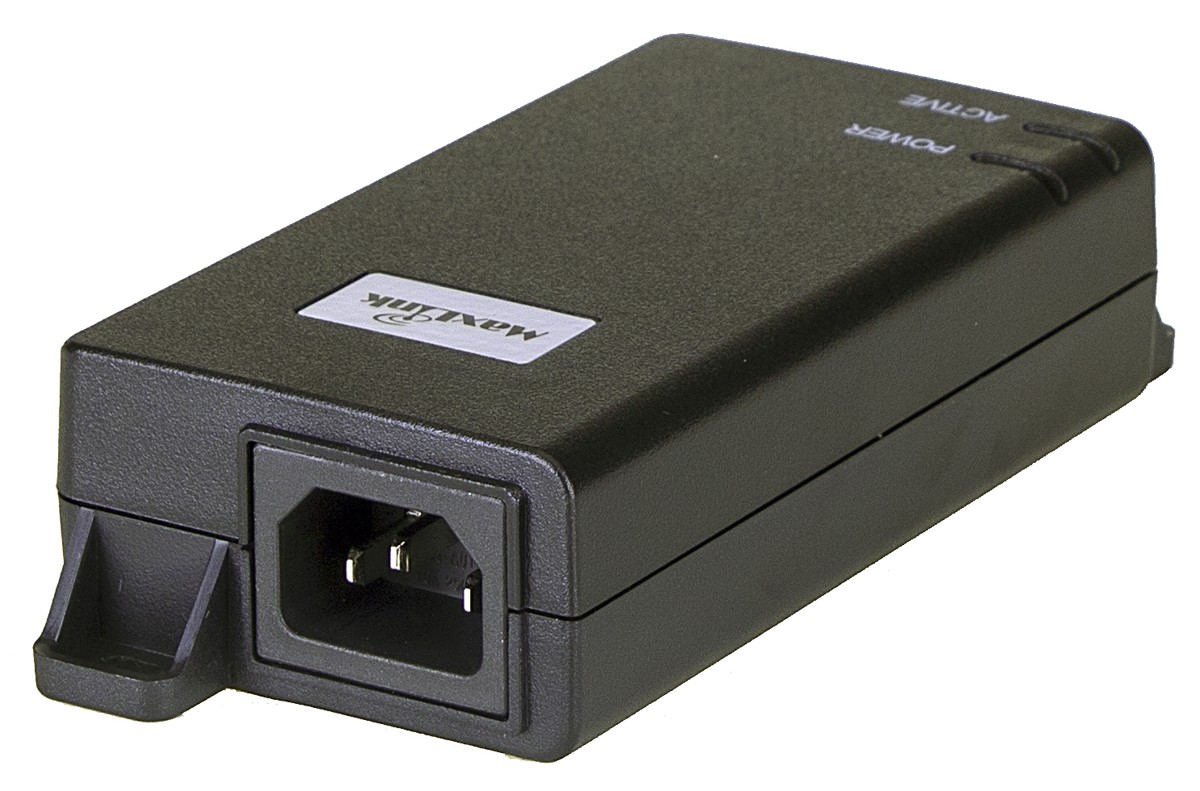

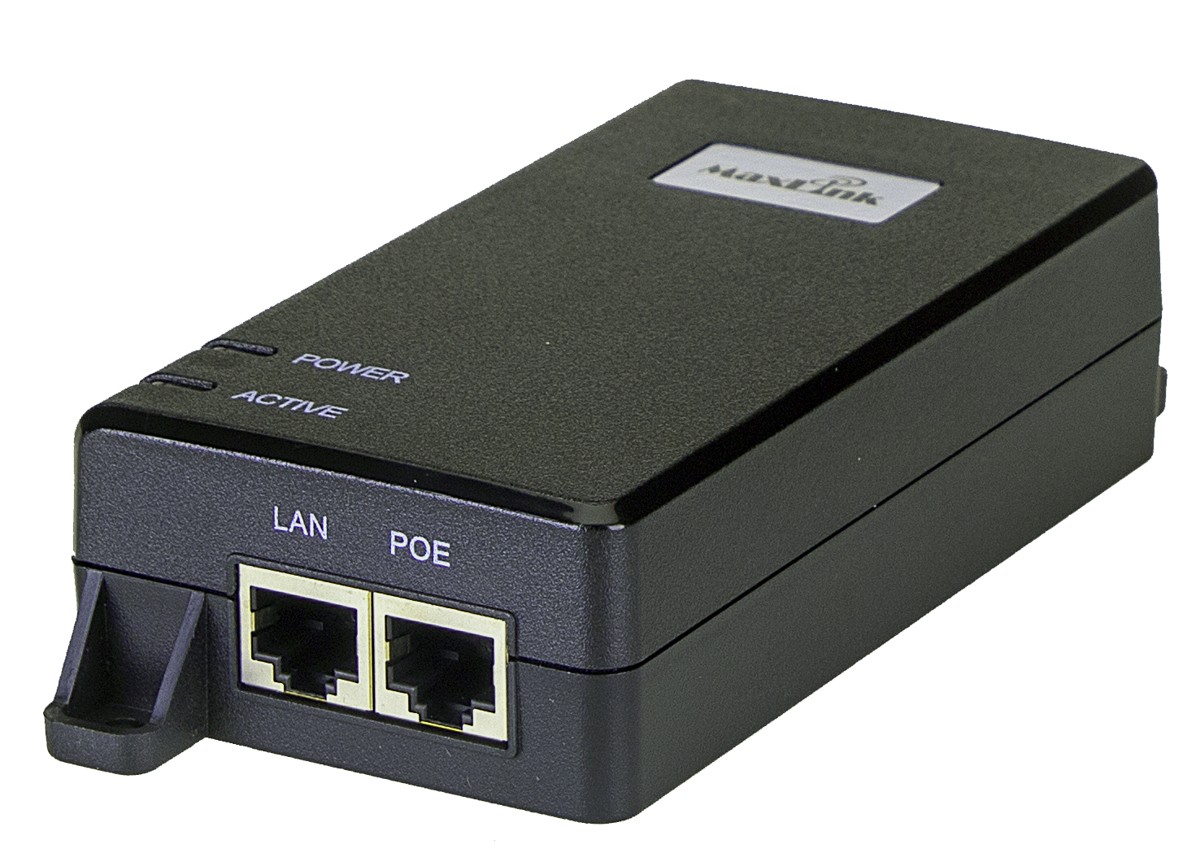

MaxLink PI60v2 PoE injector - 802.3af/at/bt, 55V, 1.1A, 60W, 1Gbit

MAXPI60v2
MaxLink PI60 is a high quality Gigabit POE injector with one POE output port for powering 802.3af/at/bt devices with maximum power consumption up to 60W. For better current load distribution, all 4 pairs of conductors are powered.The power cord is included.... More information
To select 7 variants
× MaxLink PI60v2 PoE injector - 802.3af/at/bt, 55V, 1.1A, 60W, 1Gbit
MaxLink PI60v2 PoE injector - 802.3af/at/bt, 55V, 1.1A, 60W, 1Gbit
MaxLink PI60v2 PoE injector - 802.3af/at/bt, 55V, 1.1A, 60W, 1Gbit
MaxLink PI60v2 PoE injector - 802.3af/at/bt, 55V, 1.1A, 60W, 1Gbit
MaxLink PI60v2 PoE injector - 802.3af/at/bt, 55V, 1.1A, 60W, 1Gbit

Product description

MaxLink PI60 is a high quality Gigabit POE injector with one POE output port for powering 802.3af/at/bt devices with maximum power consumption up to 60W. For better current load distribution, all 4 pairs of conductors are powered.

The power cord is included.

Specifications

Physical characteristics

Operating temperature [°C]:-10 up to 45
Weight [g]:255
Height [mm]:34
Width [mm]:66
Depth [mm]:146

Connectors and Interfaces

Ethernet speed [Mbps]:10/100/1000
Gigabit LAN:Yes

Power

Pin powering:1,2,7,8 (-), 3,4,5,6 (+)
Output Power / 1port [W]:60
LED indication:Yes
PoE-Out standards:802.3af, 802.3at, 802.3bt
PoE Out ports:1
Output Voltage [V]:55
