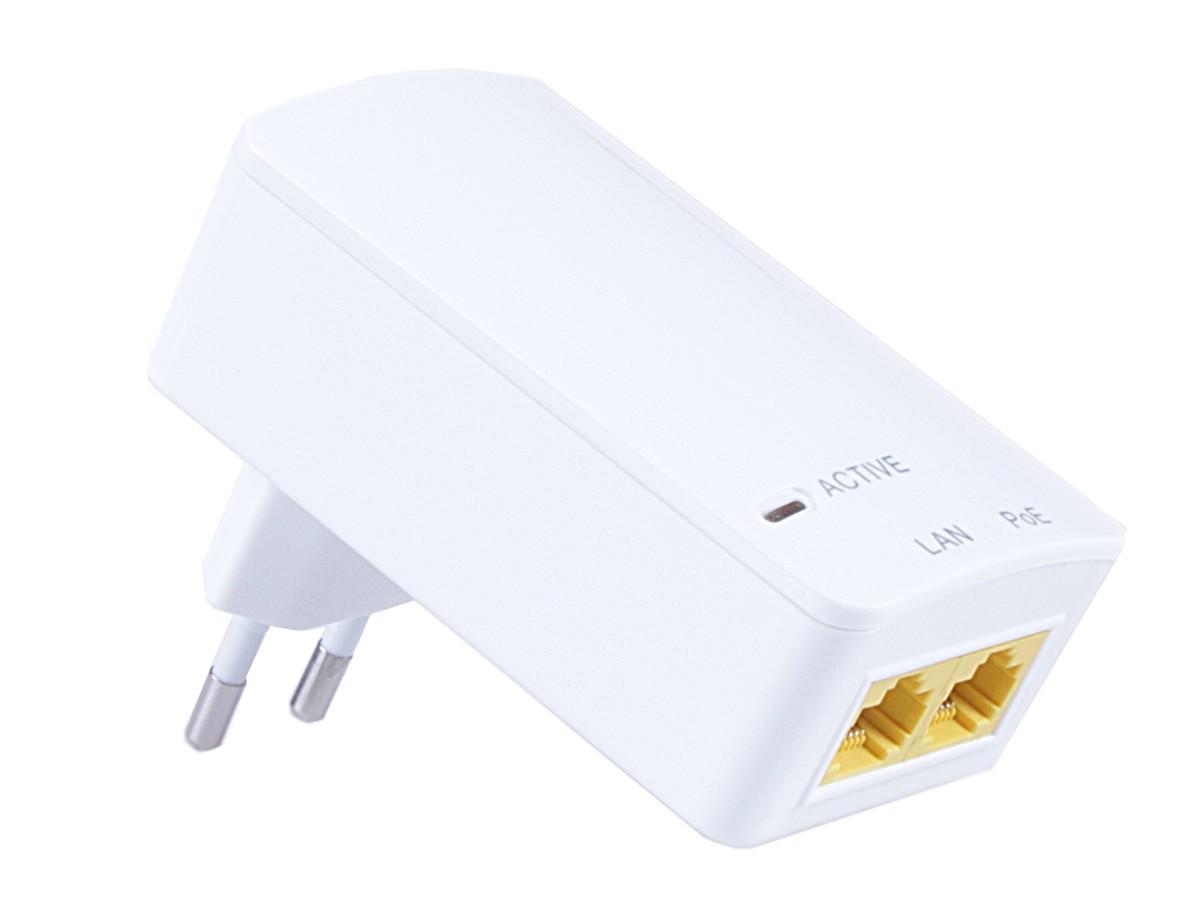

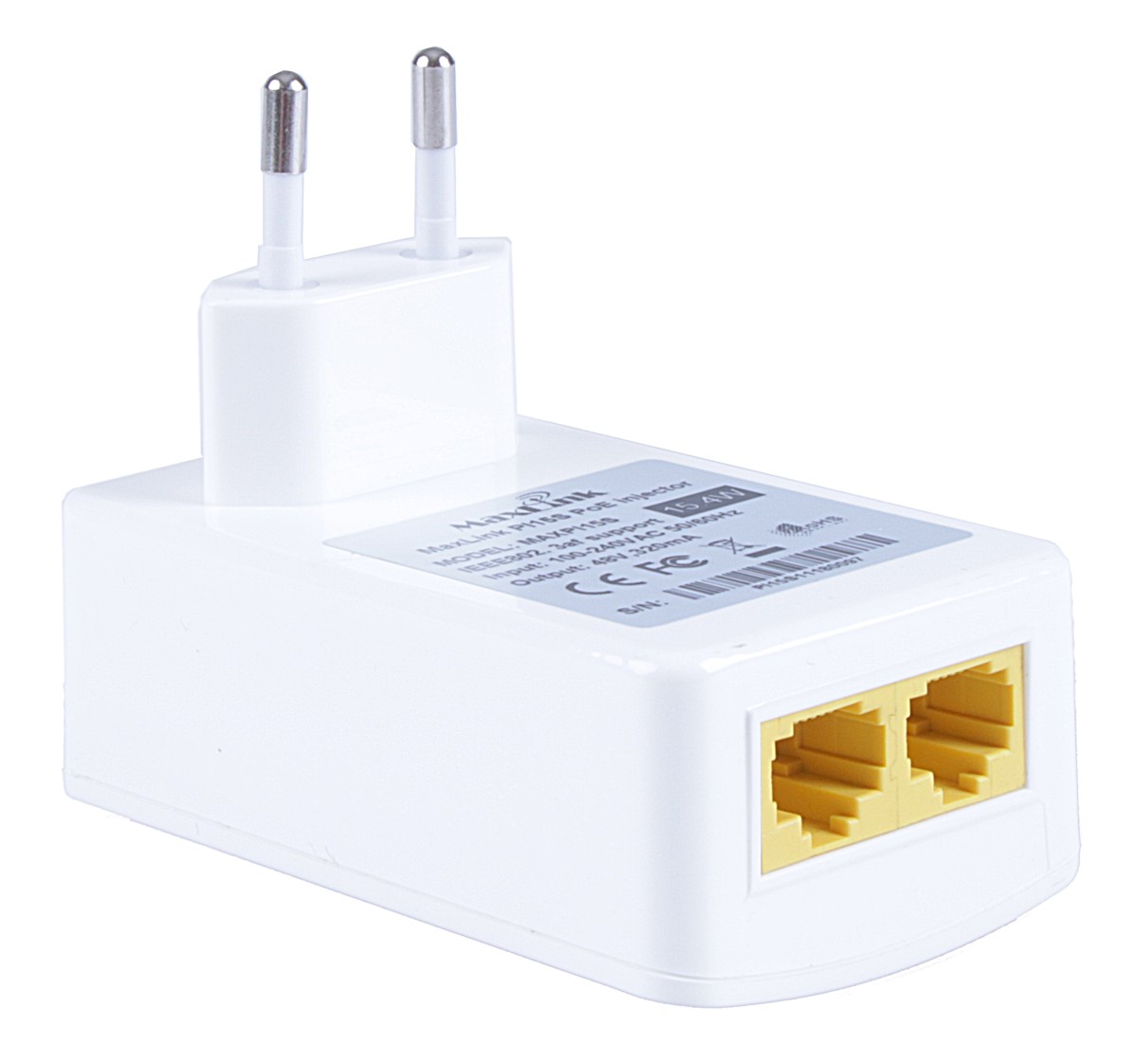

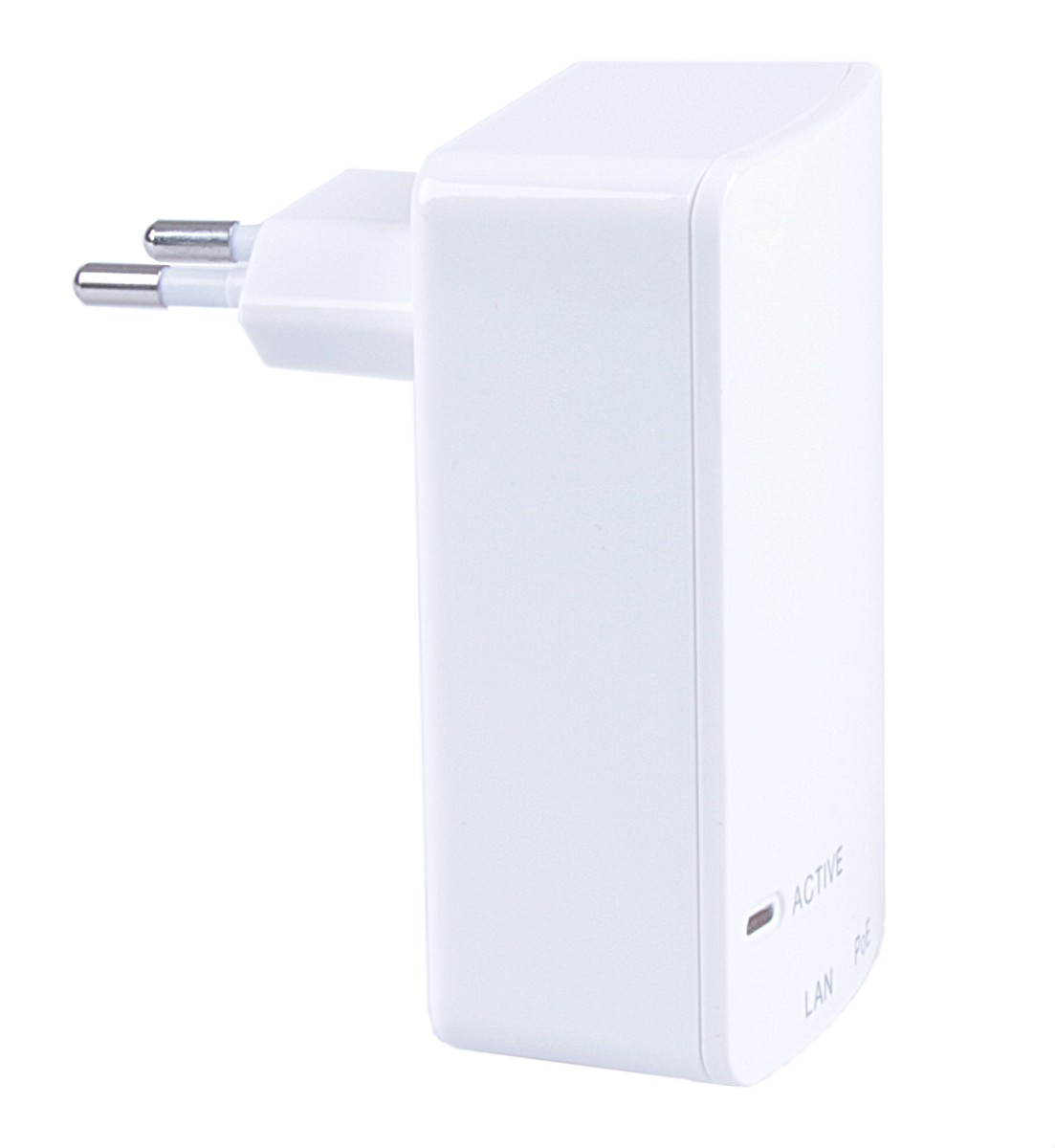

MaxLink PI15S PoE injector - 802.3af, 48V, 320mA, 15,4W, 1Gbit, socket

MAXPI15S
MaxLink PI15S is high quality Gbit POE injector with 1 POE Out eth port for devices which support 802.3af. It provides 15,4W. Plug injector directly to socket. Powering through 4,5(+) and 7,8(-). It is suitable especially for IP cams, VOIP phones, etc.... More information
To select 7 variants
× MaxLink PI15S PoE injector - 802.3af, 48V, 320mA, 15,4W, 1Gbit, socket
MaxLink PI15S PoE injector - 802.3af, 48V, 320mA, 15,4W, 1Gbit, socket
MaxLink PI15S PoE injector - 802.3af, 48V, 320mA, 15,4W, 1Gbit, socket
MaxLink PI15S PoE injector - 802.3af, 48V, 320mA, 15,4W, 1Gbit, socket
MaxLink PI15S PoE injector - 802.3af, 48V, 320mA, 15,4W, 1Gbit, socket
MaxLink PI15S PoE injector - 802.3af, 48V, 320mA, 15,4W, 1Gbit, socket
MaxLink PI15S PoE injector - 802.3af, 48V, 320mA, 15,4W, 1Gbit, socket

Product description

MaxLink PI15S is high quality Gbit POE injector with 1 POE Out eth port for devices which support 802.3af. It provides 15,4W. Plug injector directly to socket. Powering through 4,5(+) and 7,8(-). It is suitable especially for IP cams, VOIP phones, etc.

Specifications

Physical characteristics

Operating temperature [°C]:0 up to 40
Weight [g]:115
Width [mm]:51
Height [mm]:69
Depth [mm]:89

Connectors and Interfaces

Ethernet speed [Mbps]:10/100/1000
Gigabit LAN:Yes

Power

Pin powering:4,5 (+), 7,8 (-)
Output Power / 1port [W]:15,4
LED indication:Yes
PoE-Out standards:802.3af
PoE Out ports:1
Output Voltage [V]:48
