MaxLink sector antenna MIMO 21-19dBi 5GHz, 60-120°

ML-SE-MM-21

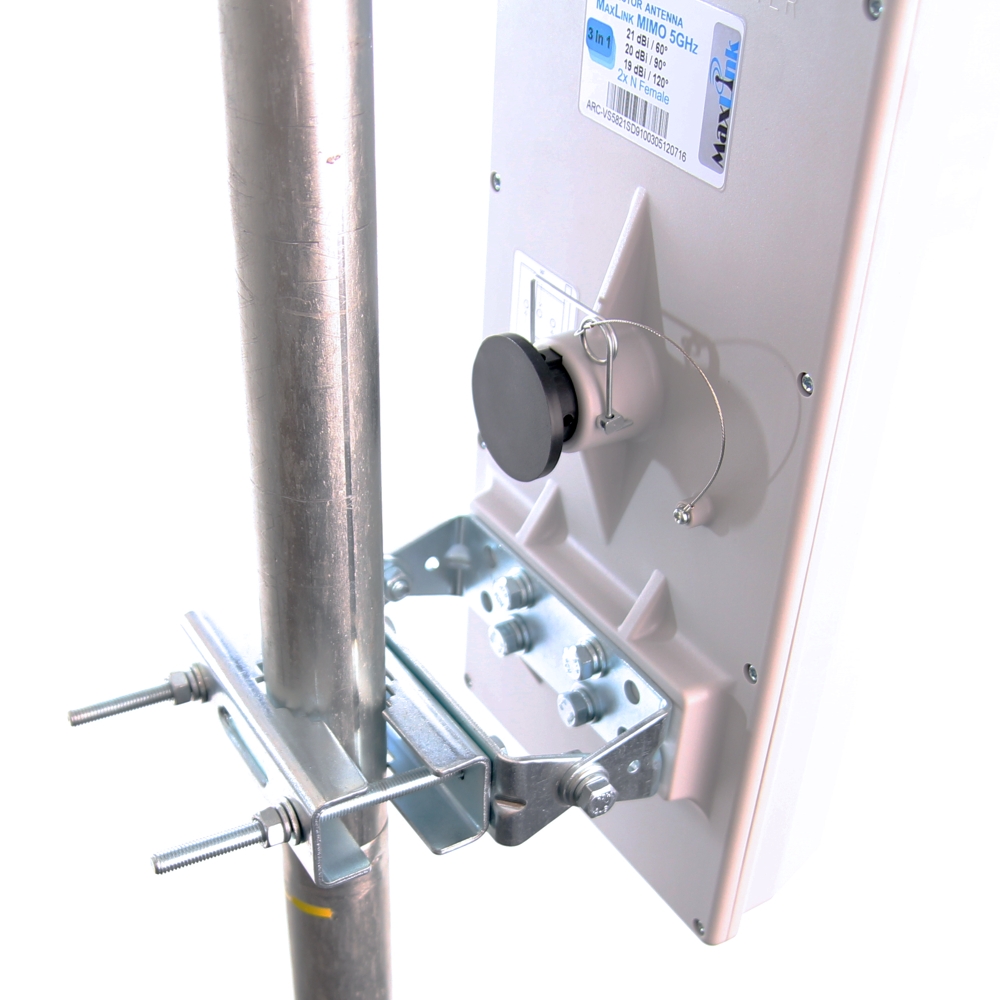

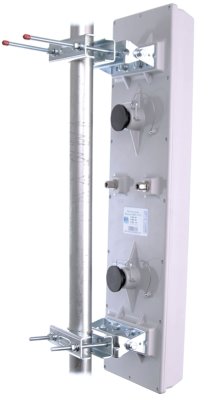

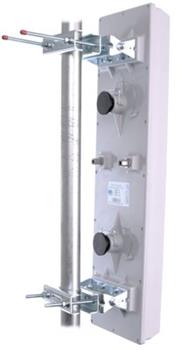

Professional Maxlink MIMO sector antenna, which allows you to adjust the beam angle to 60, 90 or 120 degrees. This antenna has a robust mounting that can withstand even the worst weather conditions. Works great with RocketM5 devices from Ubiquiti Networks and RouterBoards Mikrotik.Technical specifi... More information

Product description

Professional Maxlink MIMO sector antenna, which allows you to adjust the beam angle to 60, 90 or 120 degrees. This antenna has a robust mounting that can withstand even the worst weather conditions. Works great with RocketM5 devices from Ubiquiti Networks and RouterBoards Mikrotik.

Technical specifications:
Parametr Value
Frequency 5 GHz
Polarization MIMO
Gain 19 - 21 dBi
Beam angles ( H / V ) 120 ° - 60 ° / 4 °
Connector 2x N - female
Lenght of the VF cable -
VSWR < 1,5
Impedance 50 Ω
Front-to-back ratio > 25 dB
Dimensions 740 x 250 x 190 mm
Weight 4,1 kg
Mounting kit ⌀ 50 - 70 mm
Package contents antenna, holder, 2x 30cm pigtail RSMA-male - N-male
Mechanical rotation + 15 ° / - 30 °

Specifications

Wireless features

Variability of beam angle:Yes
VSWR:< 1,5
MIMO, SISO:2 x 2
Polarization:VH
Wireless frequency:5 GHz
Elevation beam width (-6dB) [°]:4
Azimuth beam width (-6dB) [°]:60, 90, 120
Antenna type:Sector
Antenna gain [dBi]:19, 20, 21

Connectors and Interfaces

RF connectors:(2) N female

Physical characteristics

Designed for mast diameter [mm]:30 up to 80
Purpose:Outdoor
Weight [kg]:4,1
Depth [mm]:75
Width [mm]:190
Height [mm]:710
