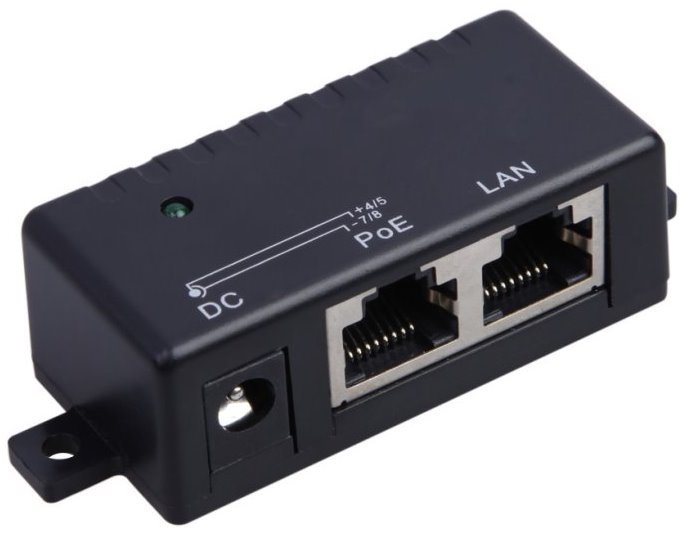

MaxLink Passive Gigabit PoE adapter with LED

POE-BOX1-G
The Gigabit PoE injector is used to power most RouteBOARDs or Ubiquiti devices supports passive PoE. This type comes with a standard size 2.1/5.5mm power connector. The PoE injector does not work with 802.3af standard and powering devices on pins 4.5 (+) and 7.8 (-).The spacing of the holes for ins... More information

Product description

The Gigabit PoE injector is used to power most RouteBOARDs or Ubiquiti devices supports passive PoE. This type comes with a standard size 2.1/5.5mm power connector. The PoE injector does not work with 802.3af standard and powering devices on pins 4.5 (+) and 7.8 (-).

The spacing of the holes for installation on a base or wall is 67mm.

Specifications

Connectors and Interfaces

Ethernet speed [Mb/s]:10/100/1000
Gigabit LAN:Yes

Power

Pin powering:4,5 (+), 7,8 (-)
The input voltage [V]:9 .. 48V DC
PoE Out ports:1

Physical characteristics

LED indication:Yes
Operating temperature [°C]:0 up to 40
Height [mm]:20
Depth [mm]:30
Width [mm]:75
