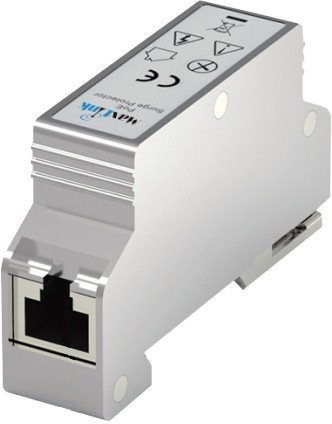

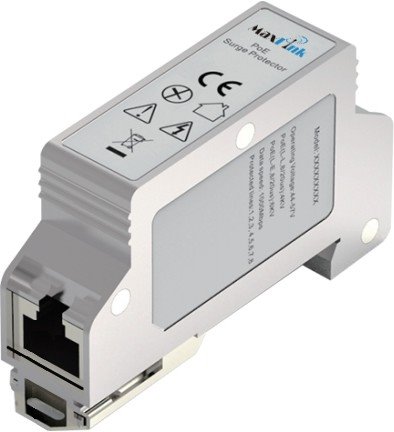

MaxLink MAXPIDIN-S DIN rail PoE surge protector, 1Gbit, PoE support

MAXPIDIN-S
MAXPIDIN-S is a single-port Gigabit surge protector from the MaxLink brand designed for indoor use and modern installation on a DIN rail. This surge protector protects your device on all 8 pins and have no problem even with the PoE from which you power your device. Surge protection supports 802.3af... More information

Product description

MAXPIDIN-S is a single-port Gigabit surge protector from the MaxLink brand designed for indoor use and modern installation on a DIN rail. This surge protector protects your device on all 8 pins and have no problem even with the PoE from which you power your device. Surge protection supports 802.3af / at / bt standards, but also passive PoE up to 60 V DC and a maximum consumption of 110 W (max. 1 A for two-pair, max. 2 A for four-pair power supply). The TP input and output cables are connected to the RJ45 ports, which are located on the top and bottom of the surge protector.

MAXPIDIN-S occupies one position on the DIN rail, the body is made of zinc alloy. It has protection IP40, operating temperature is respectable -40 to 85 °C, shock resistant to 10 kV overvoltage (10 / 700 us) and the total physical dimensions are 19 x 77 x 45 cm (w, h, d).

Specifications

Connectors and Interfaces

Gigabit LAN:Yes

Physical characteristics

Protection class:IP40
Design:DIN rail
Purpose:Indoor
Operating temperature [°C]:-40 up to 85
Width [mm]:19
Depth [mm]:45
Height [mm]:77
