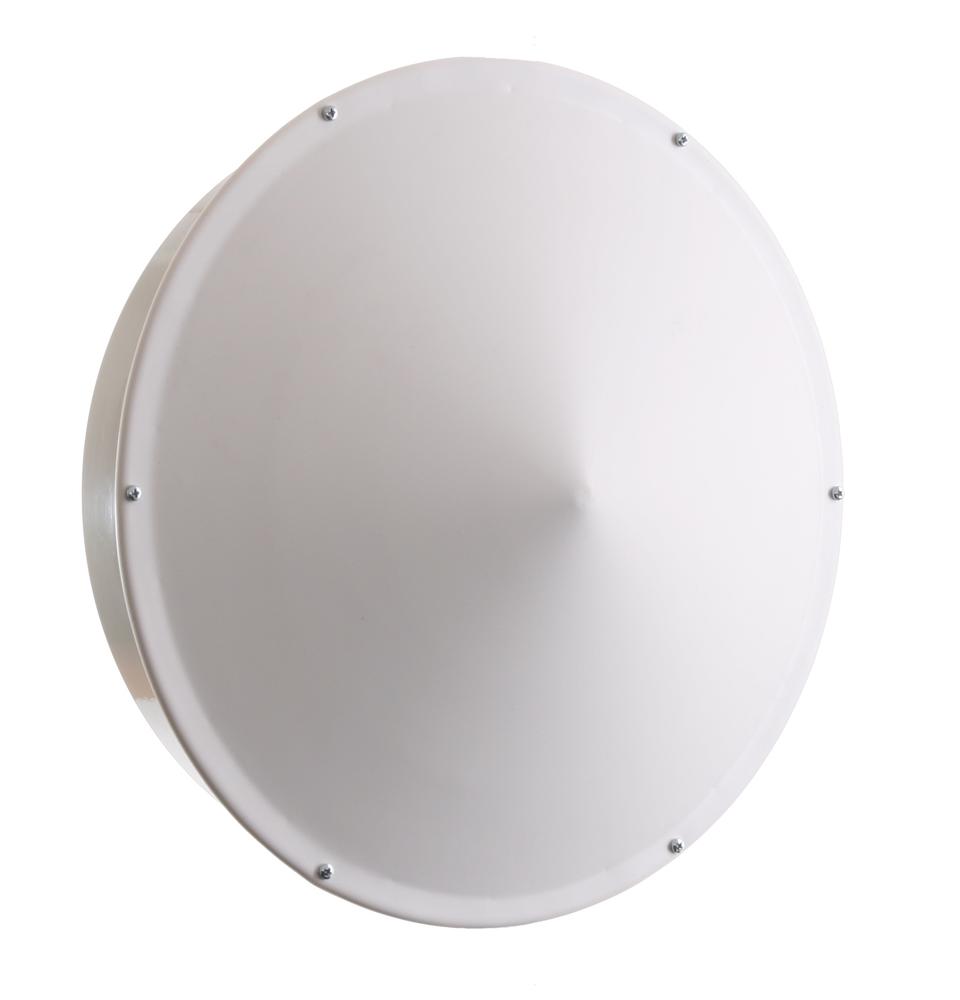

MaxLink dish antenna extreme with collar + radom 24dBi 5GHz

02-PR-MEX24
The professional parabolic antenna with collar and radome with a gain of 24 dBi, excels in a very narrow directionality of 8 ° in both directions and suppression of the rear and side lobes to a minimum. The collar increases the resistance to interference of the multiple antennas in one place. The h... More information

Product description

The professional parabolic antenna with collar and radome with a gain of 24 dBi, excels in a very narrow directionality of 8 ° in both directions and suppression of the rear and side lobes to a minimum. The collar increases the resistance to interference of the multiple antennas in one place. The heart of the parabola is made of the Pacific Wireless radiator. The antenna holder is made of galvanized steel sheet with a thickness of 3 mm for maximum strength, at the same time allows the antenna to rotate in the range of 40 ° in the vertical direction.

Specifications

Wireless features

MIMO, SISO:1 x 1
Polarization:V or H

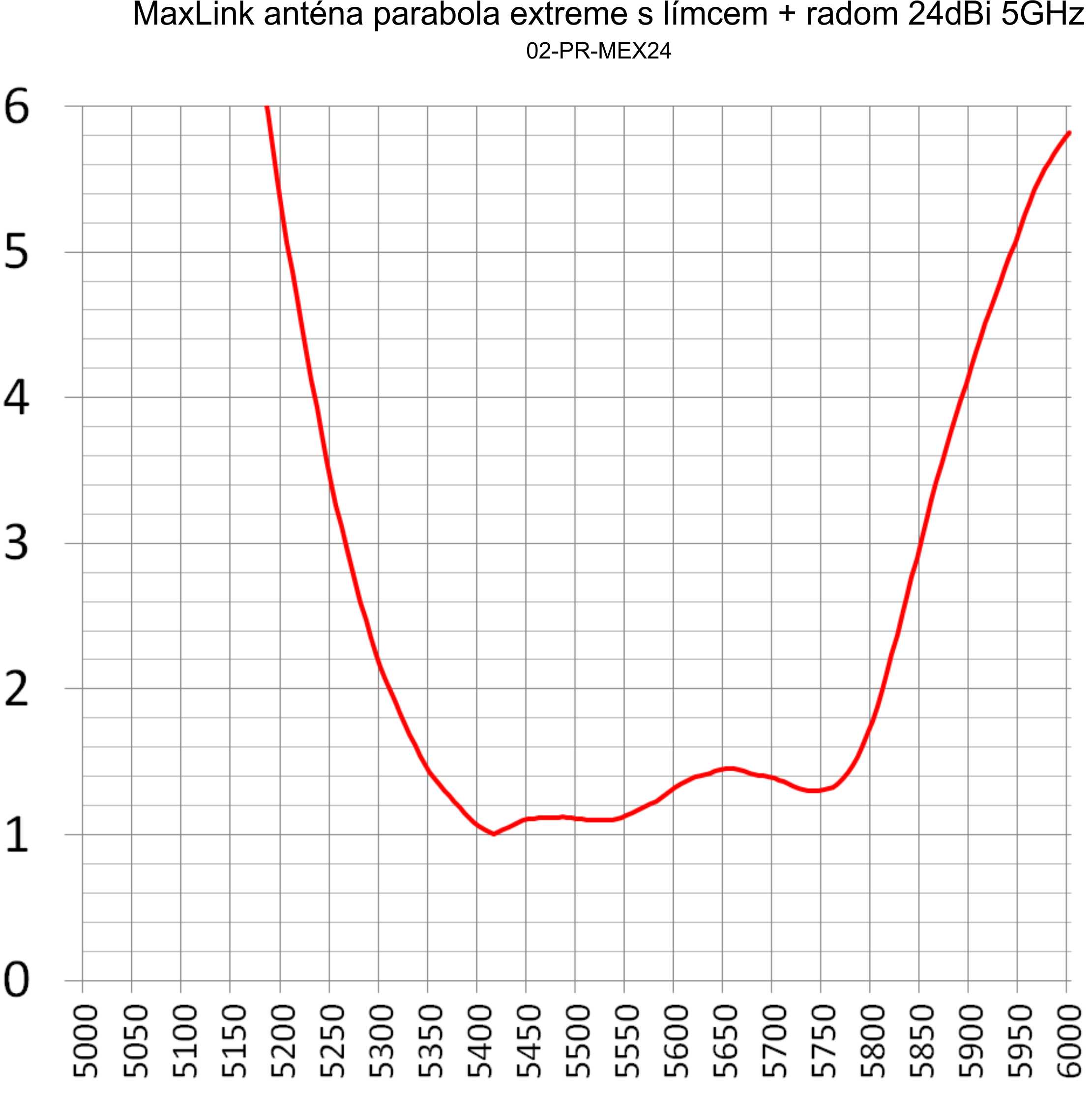

VSWR:< 1,5
F/B ratio [dB]:30
Wireless frequency:5 GHz

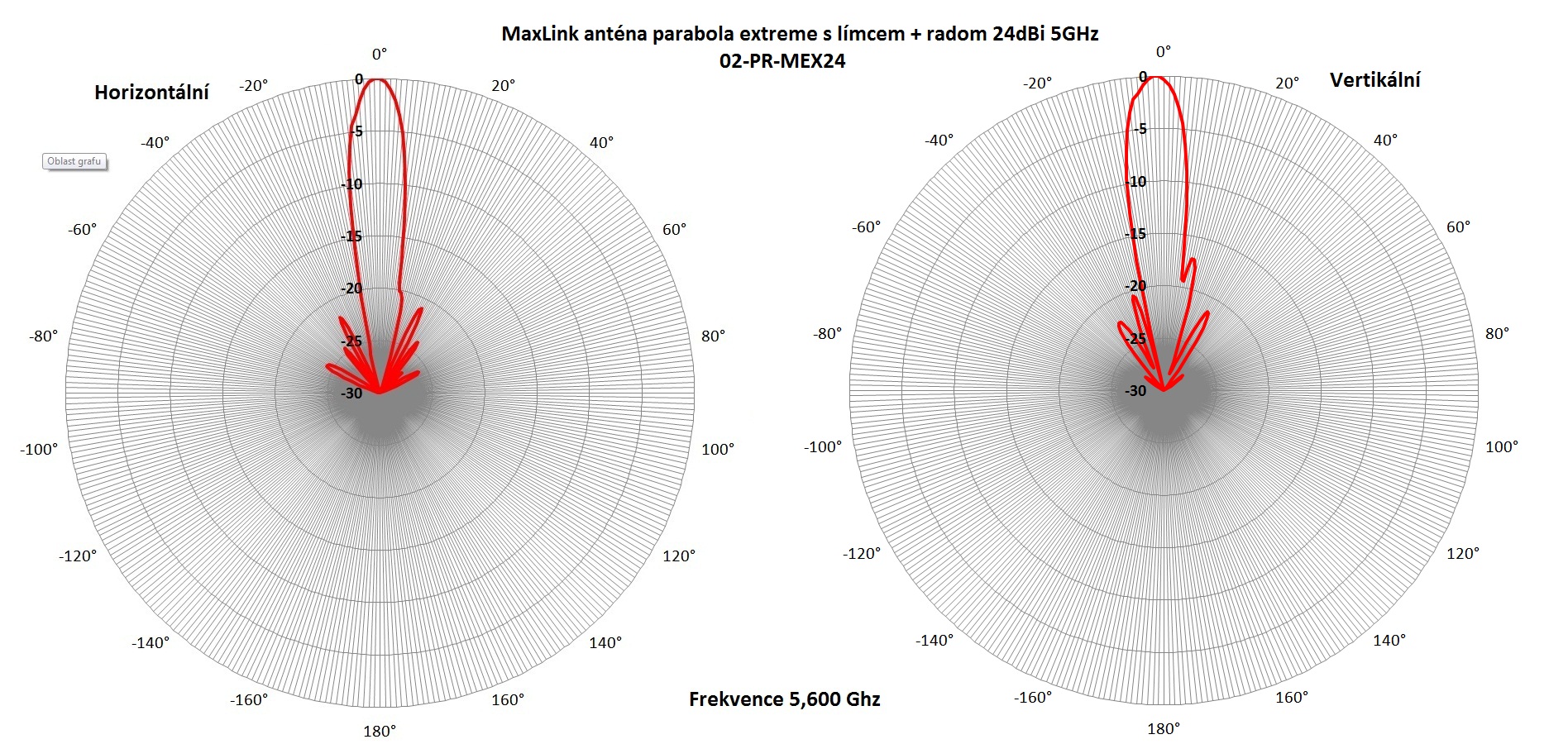

Elevation beam width (-6dB) [°]:8
Azimuth beam width (-6dB) [°]:
Antenna type:Directional
Antenna gain [dBi]:24

Connectors and Interfaces

RF connectors:(1) N female

Physical characteristics

Antenna design:Parabolic
Radom:Yes
Designed for mast diameter [mm]:28 up to 60
Purpose:Outdoor
Collar:Yes
Weight [kg]:2,5
Width [mm]:445
Height [mm]:
