Sorry but the product is no longer in our offer.

MaxLink DIN30-240 PoE injector - 100-240VAC/ 44-57VDC, 802.3af/at, 55V, 550mA, 30W, 1Gbit

MAXPIDIN30-240

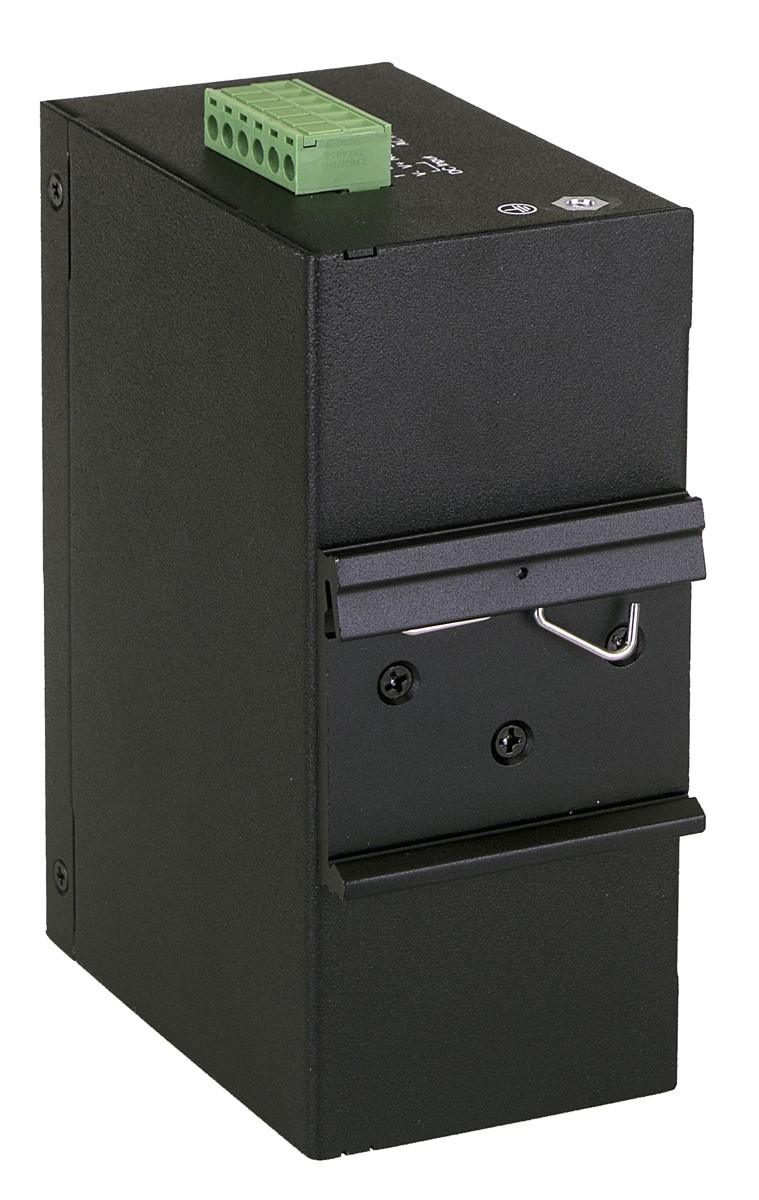

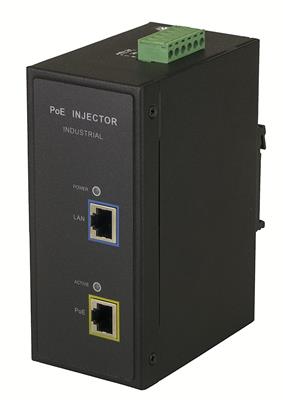

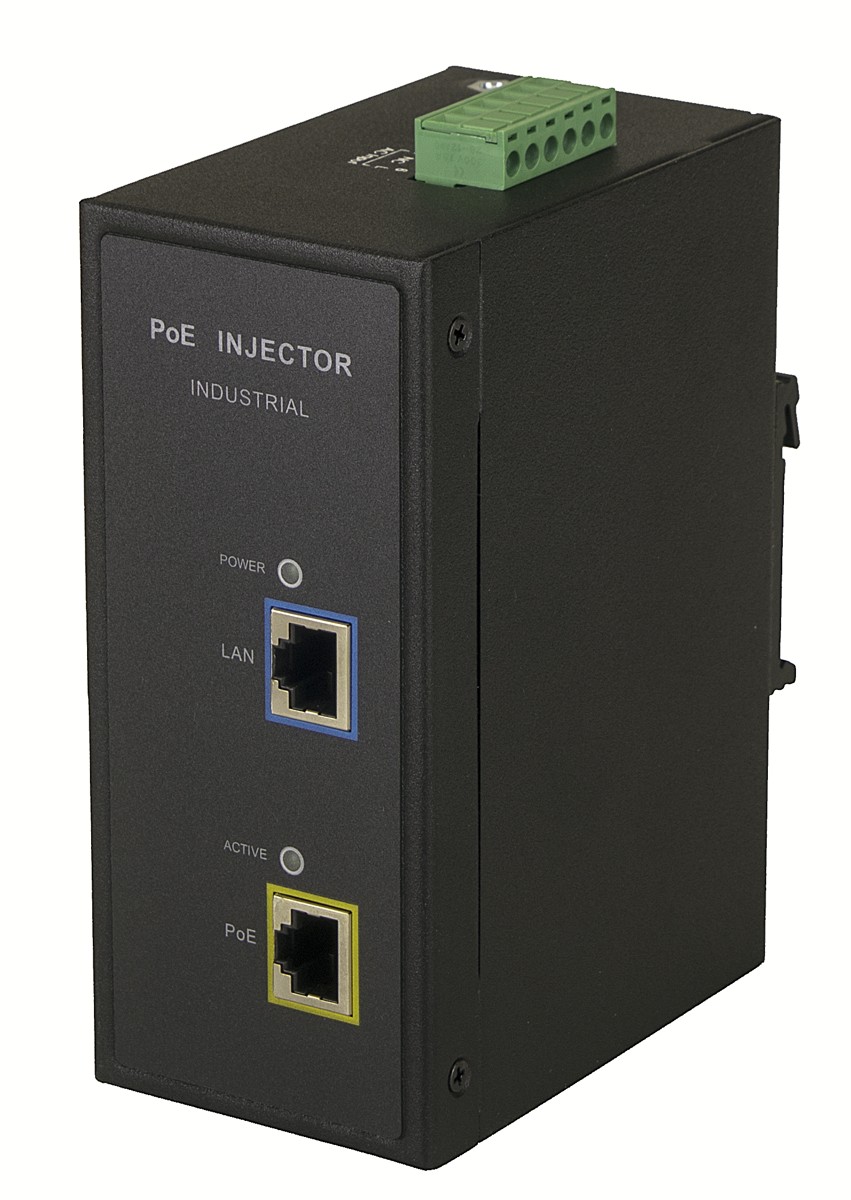

MaxLink MAXPIDIN30-240 is an active DIN rail mounting PoE injector with DC power input from 44 to 57 V or 100-240 VAC and built in power converter. The output of this power supply is 1Gbit port with support of the 802.3af/at (55 V) which is dedicated for Wi-Fi, VoIP, or wireless links. The PoE's di... More information
To select 3 variants

Product description

MaxLink MAXPIDIN30-240 is an active DIN rail mounting PoE injector with DC power input from 44 to 57 V or 100-240 VAC and built in power converter. The output of this power supply is 1Gbit port with support of the 802.3af/at (55 V) which is dedicated for Wi-Fi, VoIP, or wireless links. The PoE's distribution is on the pins 4, 5 (+) and 7, 8 (-). The second 1Gbit LAN port is used for data input. Total power is 30 W. The main advantage of this power supply is 6kV (10/700us) overvoltage protection.

This PoE injector is best for using in the places where you already have a main power supply such as the solar panels or a high voltage power supply.

Specifications

Connectors and Interfaces

Ethernet speed [Mb/s]:10/100/1000
Gigabit LAN:Yes

Power

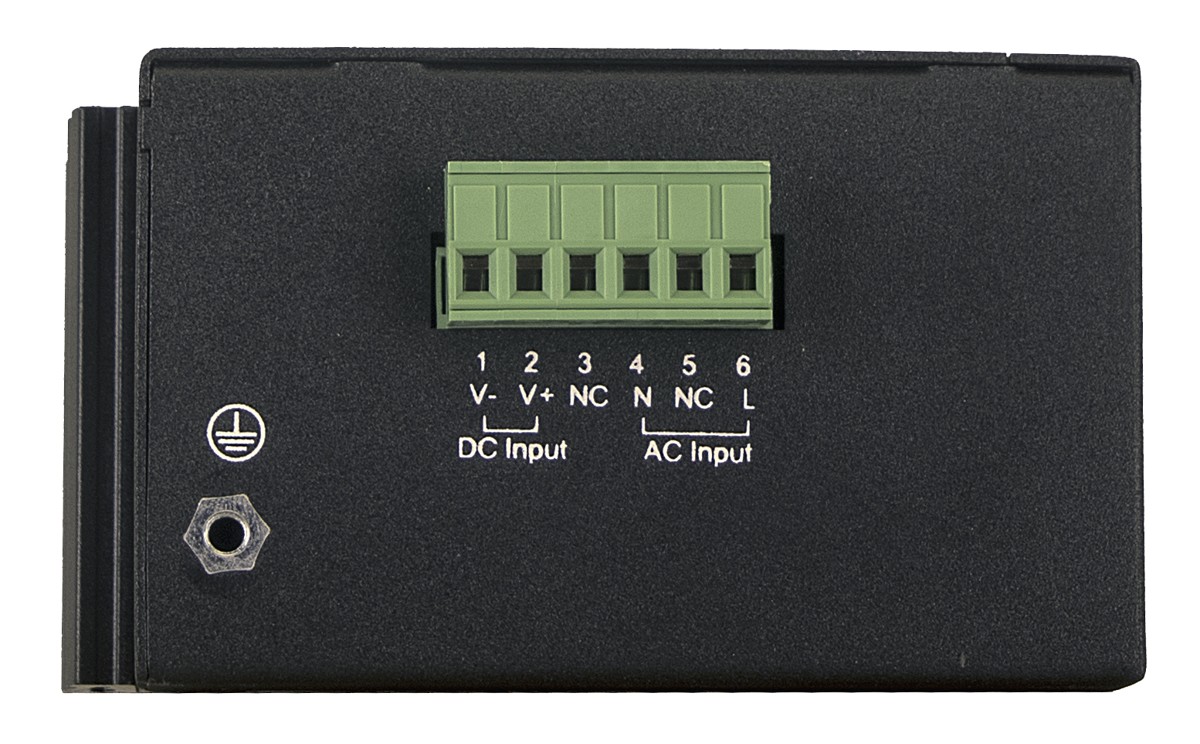

Pin powering:4,5 (+), 7,8 (-)
Output Power / 1port [W]:60
PoE-Out standards:802.3af, 802.3at
PoE Out ports:1
Output Voltage [V]:55

Physical characteristics

Protection class:IP40
LED indication:Yes
Operating temperature [°C]:-40 up to 65
Weight [g]:819
Width [mm]:60
Depth [mm]:104
Height [mm]:145
