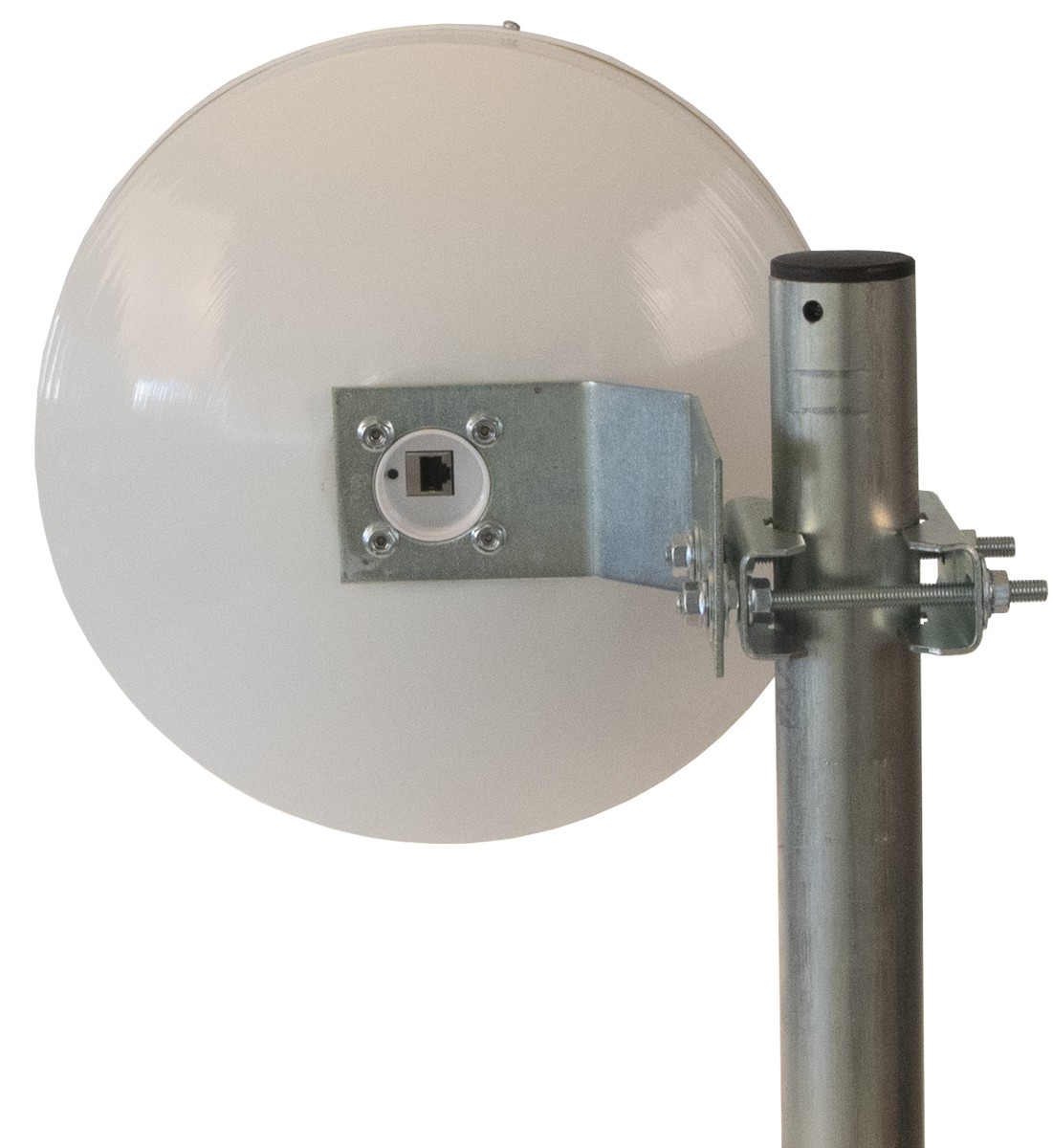

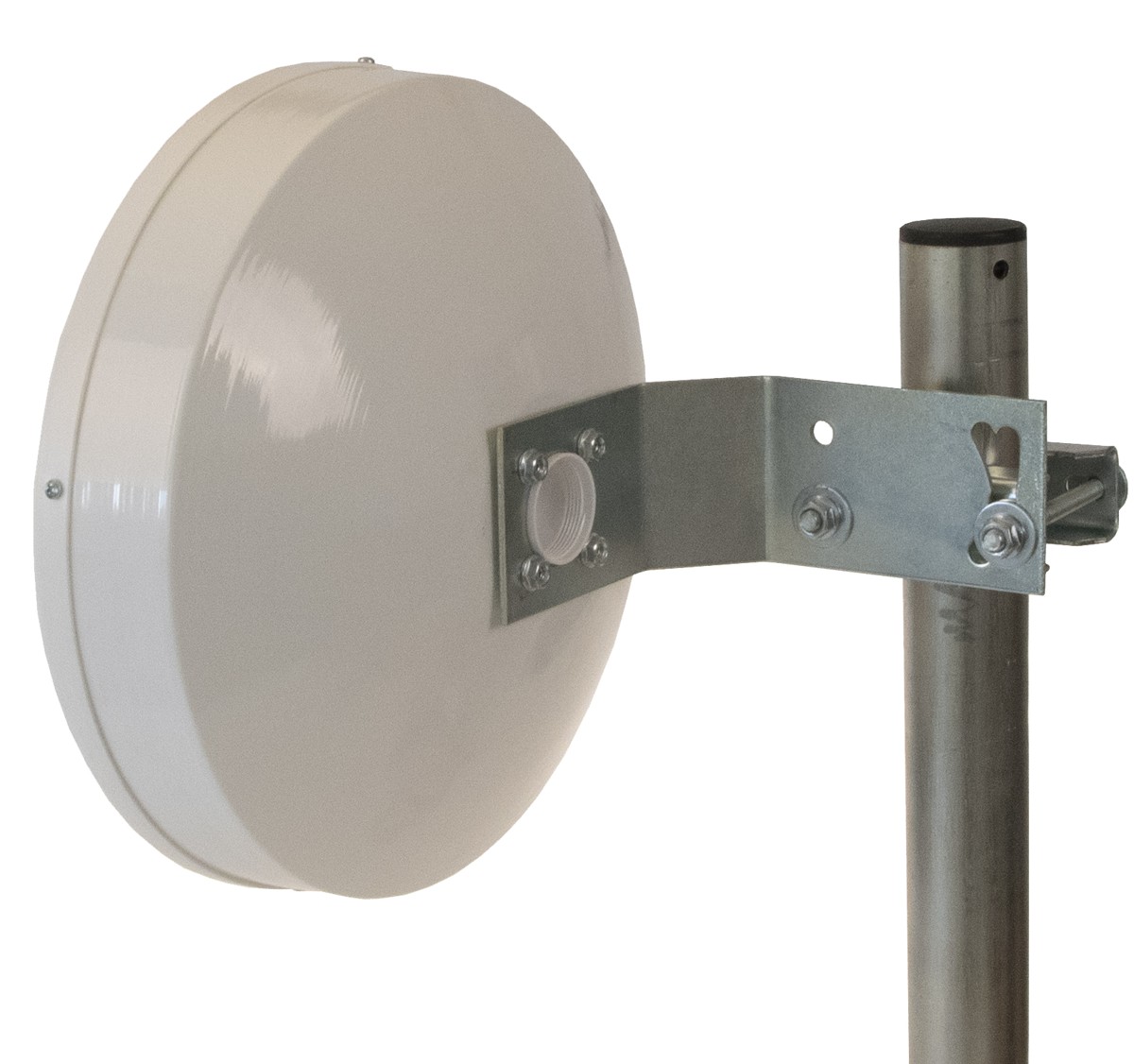

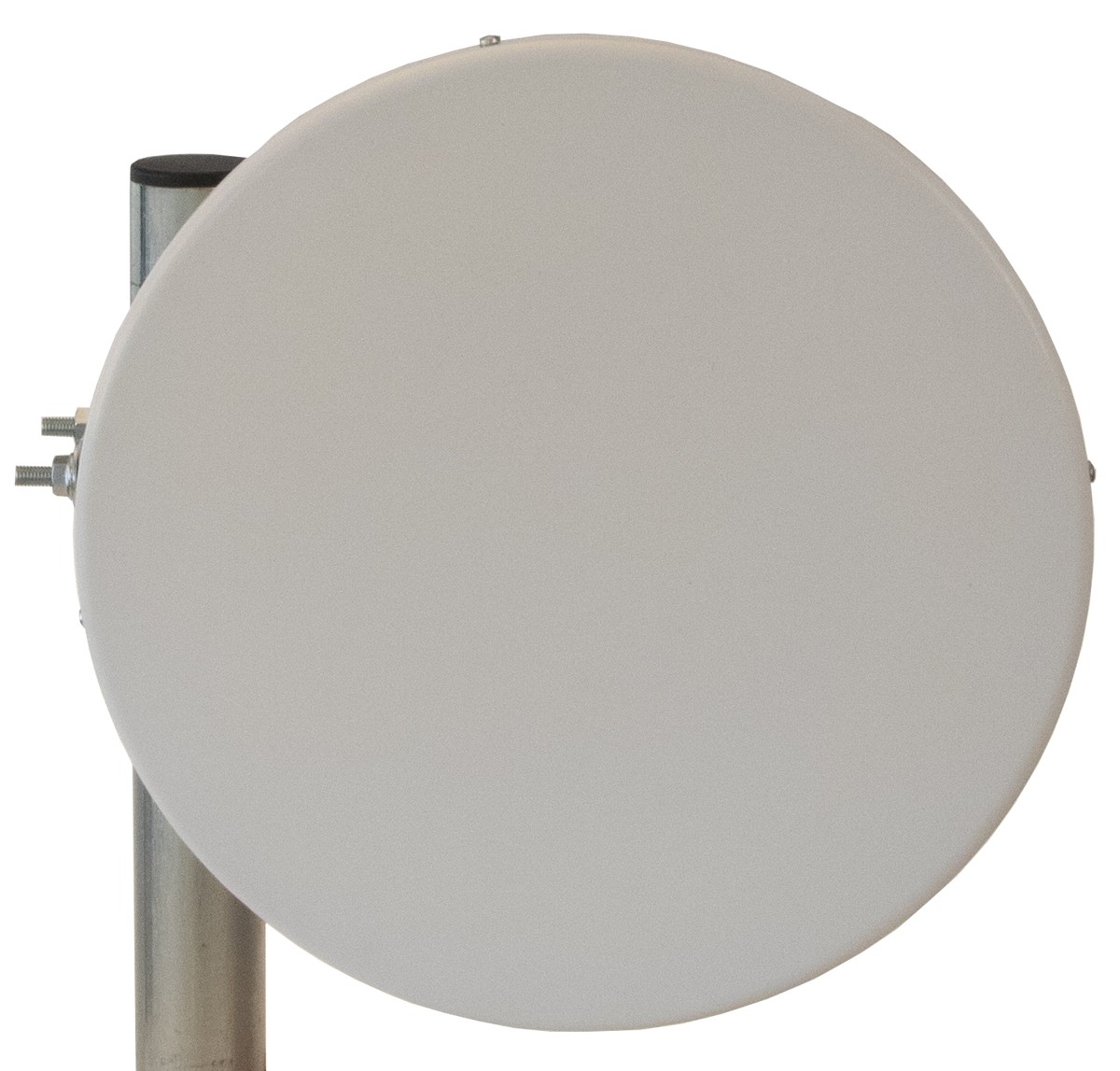

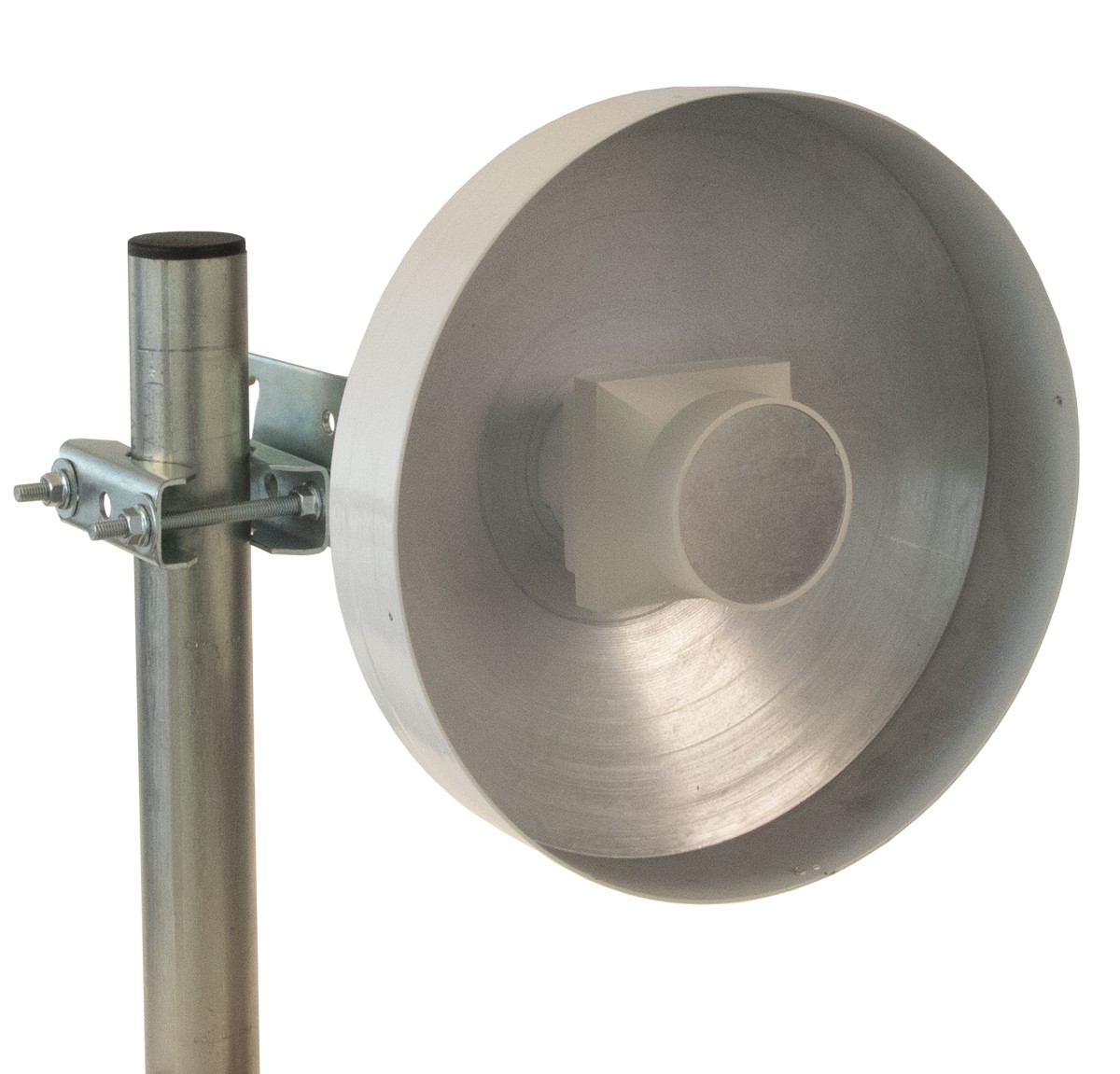

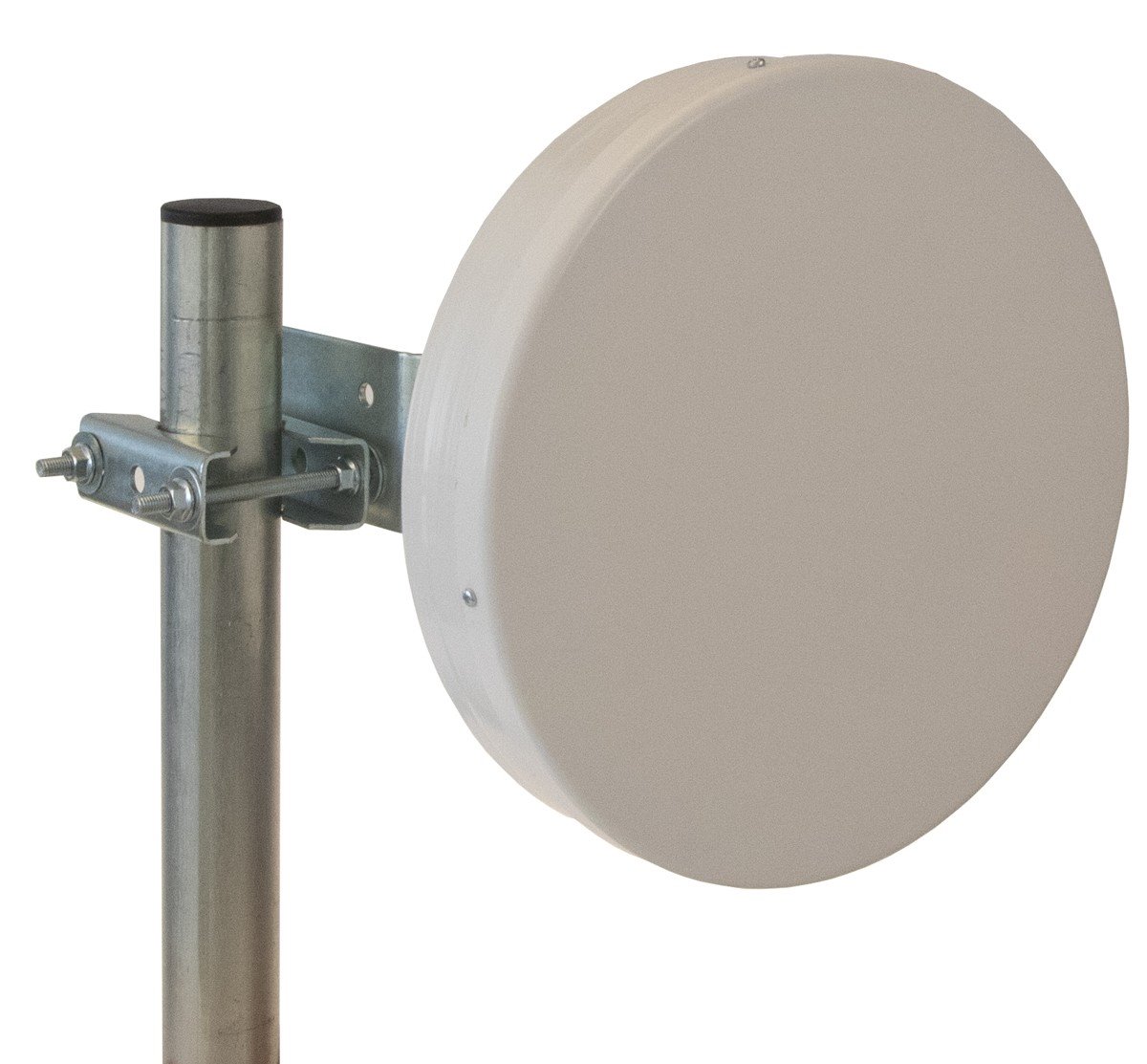

Maxlink brings alternative to Disc and LHG units. We used the not so well known but still excellent LDF unit and developed a parabolic collar antenna with a gain of 22dBi especially for it.
The unit is intended for medium distances and, thanks to the collar and radome cover, it is suitable even for harsh conditions, where it can better withstand both weather conditions and interference from other networks.
In combination with the RBLDFG-5acD, a robust device was created, suitable both for PTP connections and as a client in PTMP installations. It has gigabit Ethernet and a maximum modulation speed of 866Mbps in the 5GHz band. Thanks to the routerOS operating system with an L3 license, it brings almost unlimited setting options.
The unit is delivered disassembled for easier and safer transportation. However, according to the attached instructions, its assembly will not take more than 10 minutes, and you will only need ordinary tools for assembly - wrench No. 10 and Phillips screwdriver for assembly, wrench No. 13 for fastening to the mast.
The device can be powered by a passive POE adapter, which is NOT included in the package. It can be powered with a voltage in the range 10-30V DC. The maximum consumption is max. 8W.
- (1) parabolic antenna
- (1) radome cover
- (1) mounting accessories
- (1) mast holder
- (1) RBLDFG-5acD
