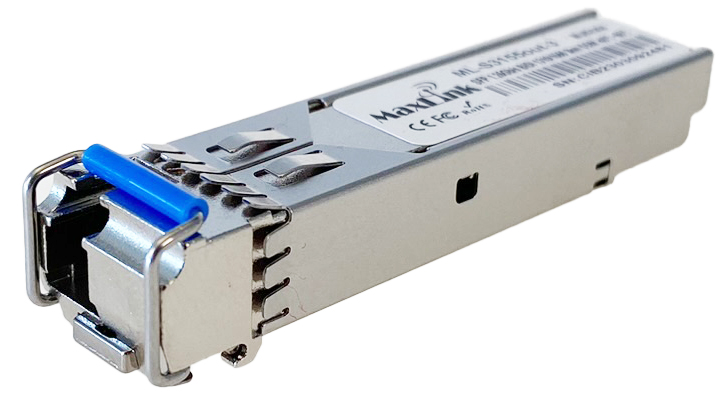

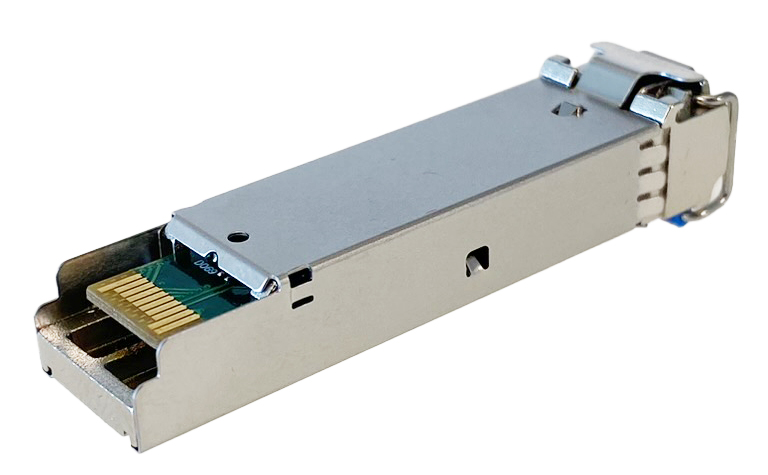

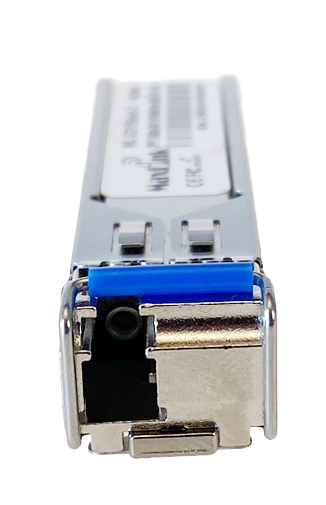

MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 3km, industrial -40C+85C, 1x LC konektor, DDM

ML-S3155out-3
WDM SFP modules use only one optical fiber for a two-way connection, thus enabling the connection density to be doubled without the need to change the optical path. The SFP module supports monitoring, or DDM function. The module is compatible with all active elements from MikroTik and also with dev... More information
To select 2 variants

Product description

WDM SFP modules use only one optical fiber for a two-way connection, thus enabling the connection density to be doubled without the need to change the optical path. The SFP module supports monitoring, or DDM function. The module is compatible with all active elements from MikroTik and also with devices from other manufacturers "cisco compatibile". The LC connector in the module has UPC type grinding. The Industrial version of the SFP module differs from the normal one with better components and a better operating temperature range, which is from -40°C to +85°C.

Attention:, for a fully functional connection, you need to purchase ML-S5531out-3 or ML-S5531-3 for this module, see related products.

Specifications

Optics

Format:SFP
For cable type:Single Mode
Transmission speed:1 Gbps
Wavelength - Tx/Rx [nm]:1310 / 1550
Distance [km]:3
Transfer type:WDM
Polishing type:UPC
Tx power [dBm]:-9 up to -3
Receiver sensitivity [dBm]:-21

Connectors and Interfaces

Optical Connectors:(1) LC

Physical characteristics

Operating temperature [°C]:-40 up to 85

General

Compatibility:Universal

Software

DDMI - diagnostics:Yes
