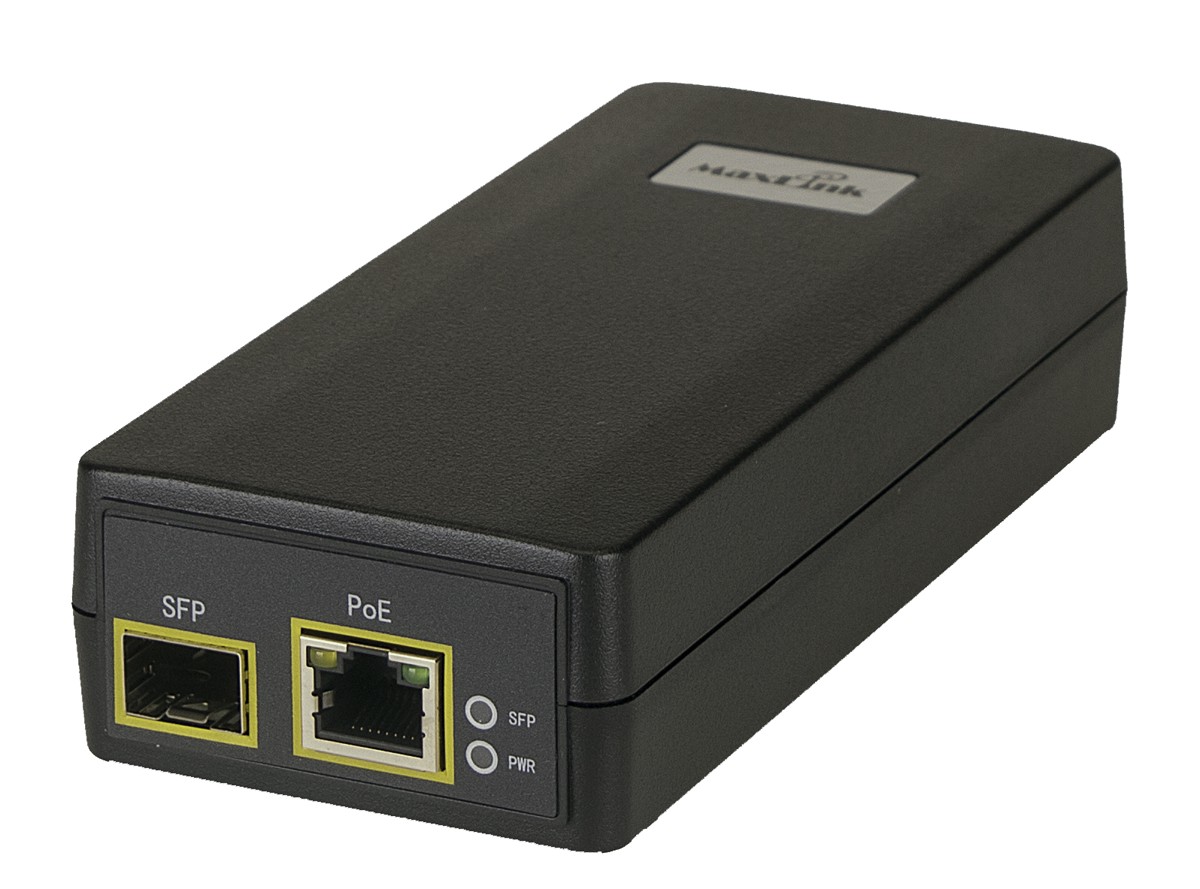

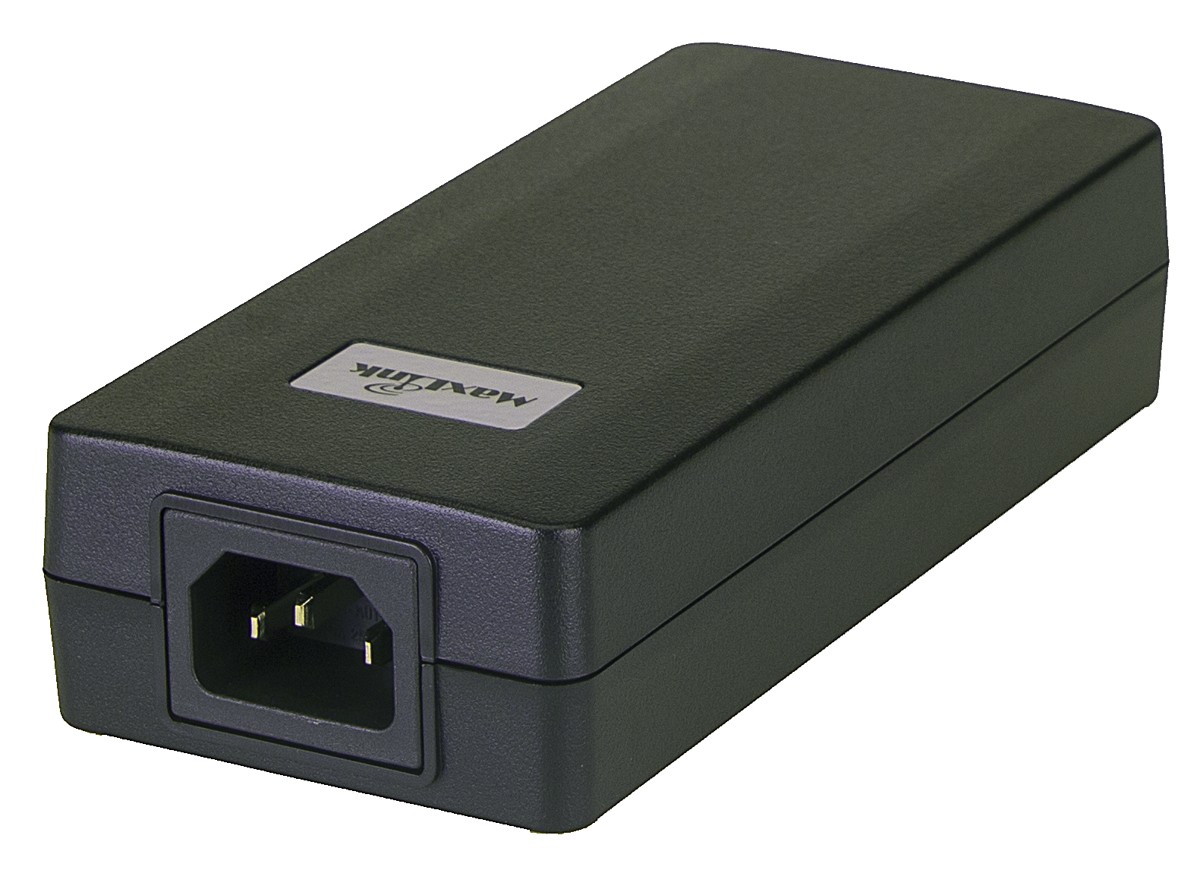

MaxLink PI30F PoE injector - SFP, 802.3af/at, 55V, 550mA, 30W, 1Gbit

MAXPI30F
MaxLink PI30F is a high-quality Gigabit POE injector with a single POE port, LAN port and one SFP port for powering 802.3af/at devices with maximum power consumption up to 30W. For better distribution of current load, power is applied to all 2 pairs of wires 1,2(-), 3,6(+). Ports (LAN / PoELAN / SF... More information

Product description

MaxLink PI30F is a high-quality Gigabit POE injector with a single POE port, LAN port and one SFP port for powering 802.3af/at devices with maximum power consumption up to 30W. For better distribution of current load, power is applied to all 2 pairs of wires 1,2(-), 3,6(+). Ports (LAN / PoELAN / SFP) are completely through, the injector acts as a switch.

We recommend installing our MaxLink SFP modules.

The power cord is included in the package.

Specifications

Physical characteristics

Operating temperature [°C]:0 up to 40
Weight [g]:245
Height [mm]:37
Width [mm]:67
Depth [mm]:146

Connectors and Interfaces

Ethernet speed [Mbps]:10/100/1000
Gigabit LAN:Yes
Optical interfaces:(1) 1000Mbps

Power

Pin powering:1,2 (-), 3,6 (+)
Output Power / 1port [W]:30
LED indication:Yes
PoE-Out standards:802.3af, 802.3at
PoE Out ports:1
Output Voltage [V]:55
