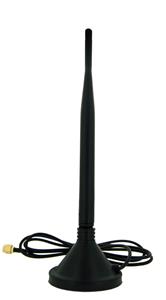

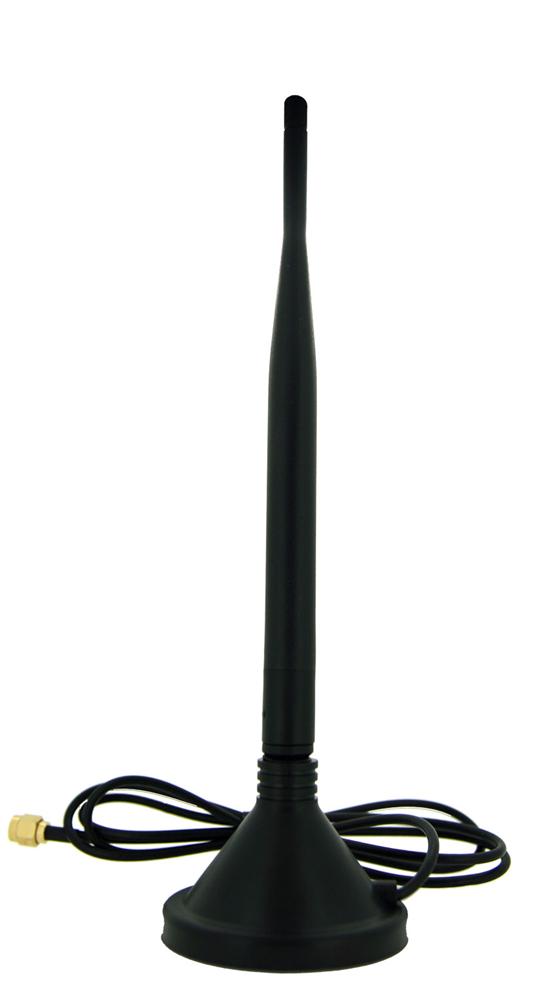

MaxLink omnidirectional dipole antenna 5dBi 2,4GHz, 1m RG174, magnet, RSMA

01-VS-MD05
5dBi omnidirectional antenna with a magnetic stand. Package includes 1 m long cable with RSMA male connector. Antenna is ideal for building home network.... More information

Product description

5dBi omnidirectional antenna with a magnetic stand. Package includes 1 m long cable with RSMA male connector. Antenna is ideal for building home network.

Specifications

Wireless features

MIMO, SISO:1 x 1
VSWR:< 1,9
Wireless frequency:2.4 GHz
Elevation beam width (-6dB) [°]:13
Azimuth beam width (-6dB) [°]:360
Antenna type:Omnidirectional
Antenna gain [dBi]:5

Connectors and Interfaces

RF connectors:(1) RSMA male

Physical characteristics

RF cable length [m]:1
Purpose:Indoor
Material:UV stabilized plastic
Weight [kg]:0,1
Width [mm]:8
Depth [mm]:
Height [mm]:180
