MaxLink DIN30 PoE injektor - 12-48VDC, 802.3af/at, 55V, 550mA, 30W, 1Gbit

MAXPIDIN30

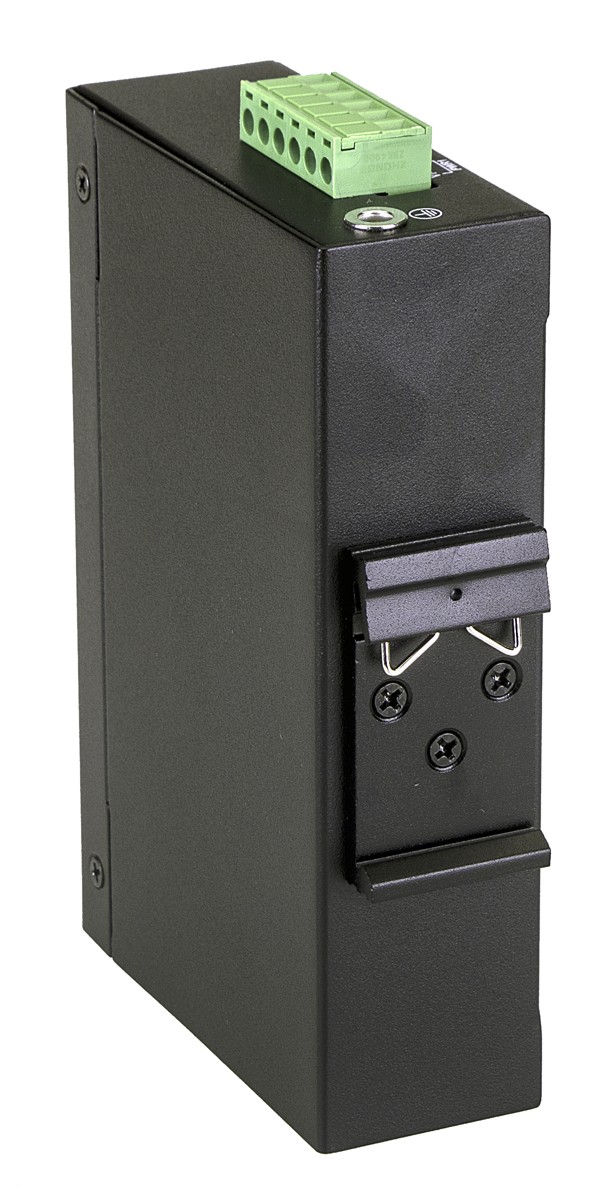

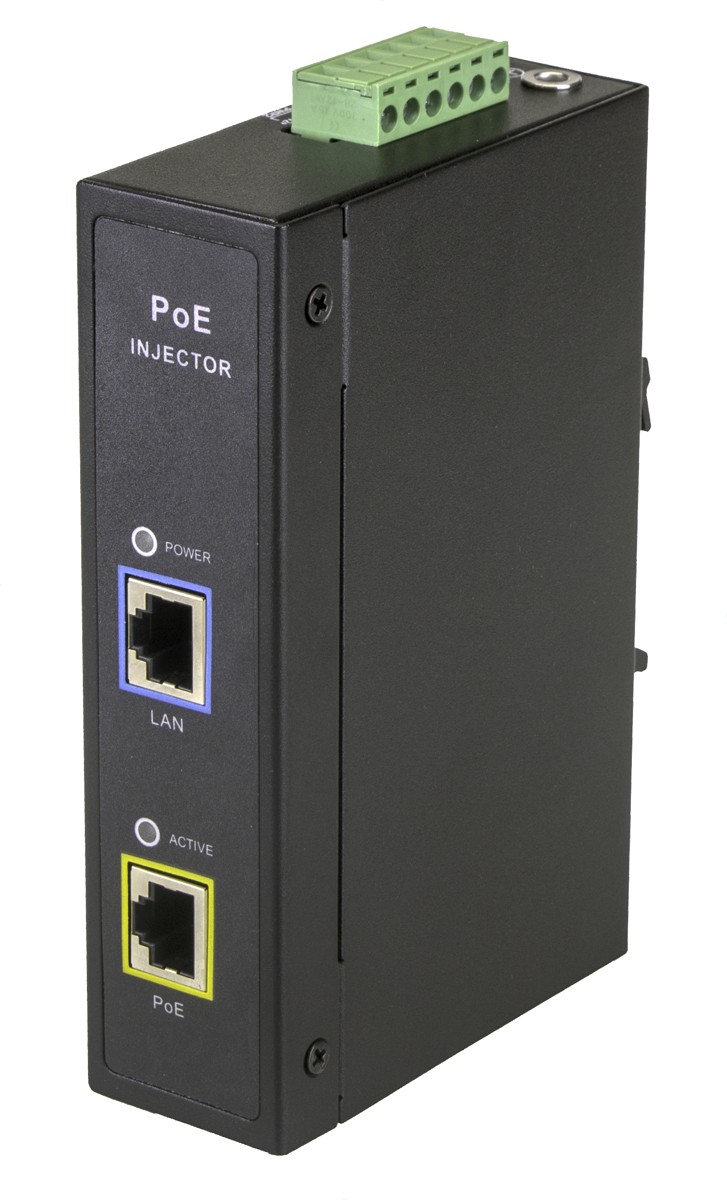

MaxLink MAXPIDIN30 is an active PoE injector with DIN rail mounting with input DC power supply 12 to 48V. The output of this power source is a Gigabit port with 802.3af/at PoE (55V) designed for WiFi, VoIP or wireless links. PoE is distributed over pins 4.5 (+) and 7.8 (-). The second Gigabit LAN s... More information
× MaxLink DIN30 PoE injektor - 12-48VDC, 802.3af/at, 55V, 550mA, 30W, 1Gbit
MaxLink DIN30 PoE injektor - 12-48VDC, 802.3af/at, 55V, 550mA, 30W, 1Gbit
MaxLink DIN30 PoE injektor - 12-48VDC, 802.3af/at, 55V, 550mA, 30W, 1Gbit
MaxLink DIN30 PoE injektor - 12-48VDC, 802.3af/at, 55V, 550mA, 30W, 1Gbit
MaxLink DIN30 PoE injektor - 12-48VDC, 802.3af/at, 55V, 550mA, 30W, 1Gbit
MaxLink DIN30 PoE injektor - 12-48VDC, 802.3af/at, 55V, 550mA, 30W, 1Gbit
MaxLink DIN30 PoE injektor - 12-48VDC, 802.3af/at, 55V, 550mA, 30W, 1Gbit

Product description

MaxLink MAXPIDIN30 is an active PoE injector with DIN rail mounting with input DC power supply 12 to 48V. The output of this power source is a Gigabit port with 802.3af/at PoE (55V) designed for WiFi, VoIP or wireless links. PoE is distributed over pins 4.5 (+) and 7.8 (-). The second Gigabit LAN serves as a data input. The total power of the power supply is 30W. The advantage of the source is 6kV (10 / 700us) surge protection.

This PoE injector is suitable for places where you already have a central power supply - whether a solar panel or a strong power supply.

Specifications

Physical characteristics

Operating temperature [°C]:-40 up to 65
Weight [g]:400
Width [mm]:32
Depth [mm]:75
Height [mm]:115

Connectors and Interfaces

Ethernet speed [Mbps]:10/100/1000
Gigabit LAN:Yes

Power

Pin powering:4,5 (+), 7,8 (-)
Output Power / 1port [W]:30
LED indication:Yes
PoE-Out standards:802.3af, 802.3at
PoE Out ports:1
Output Voltage [V]:55
