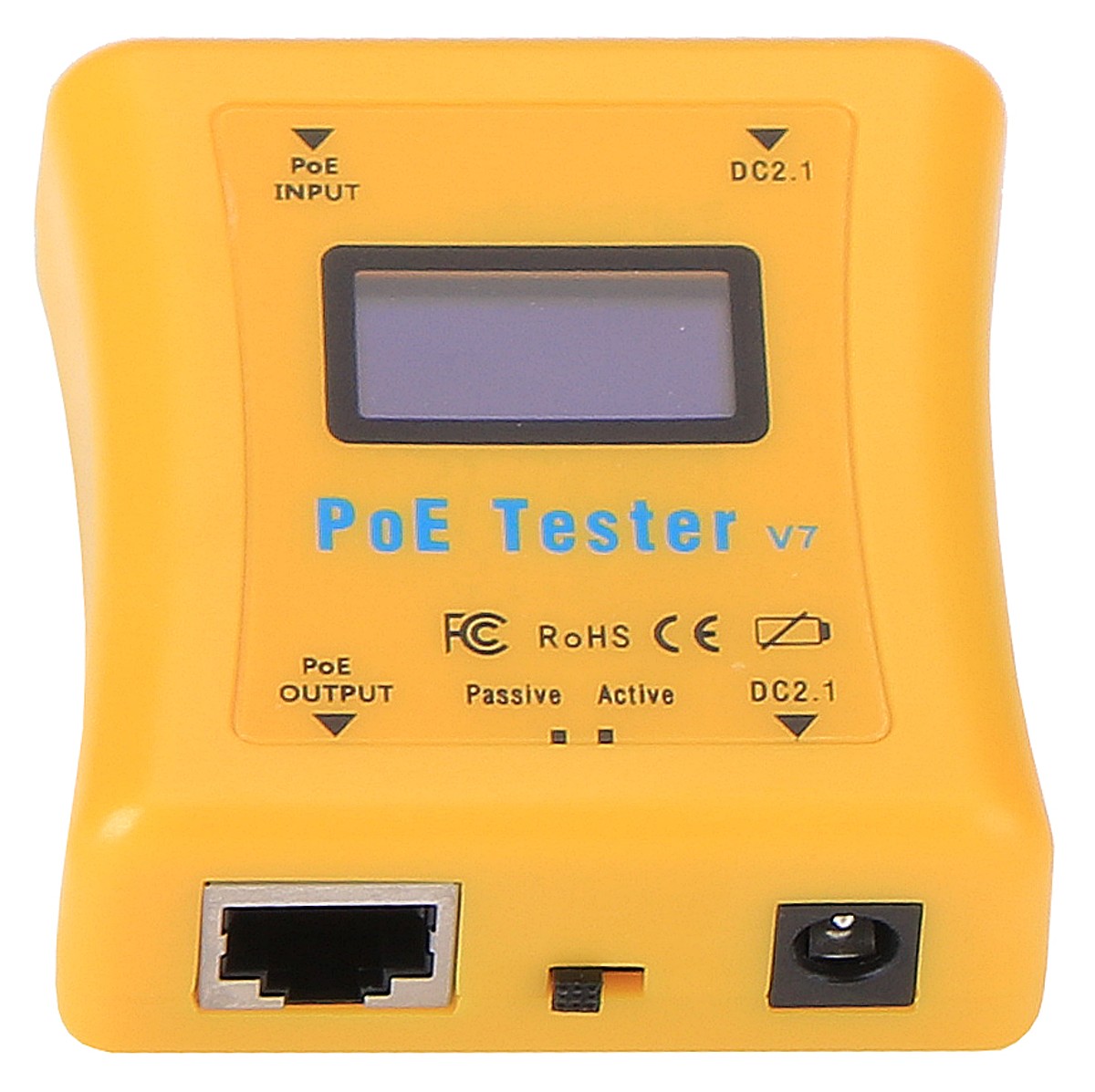

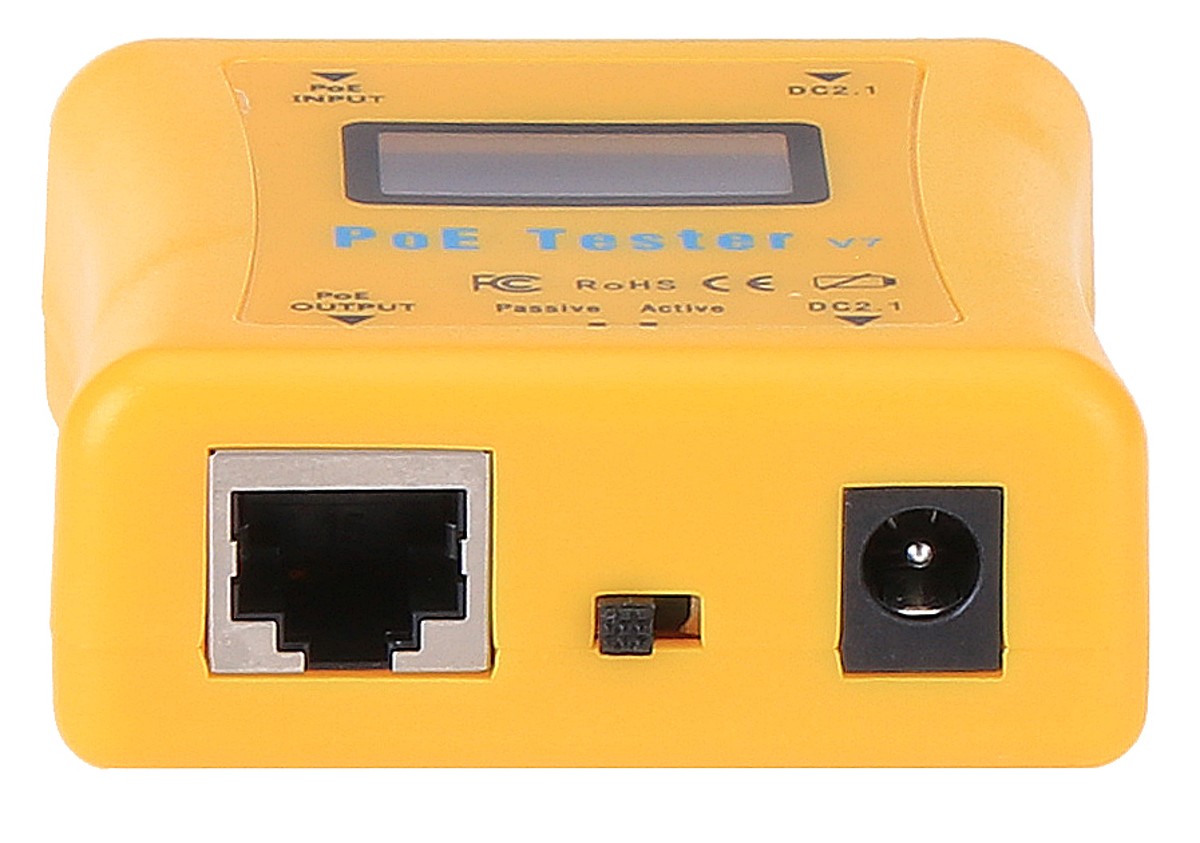

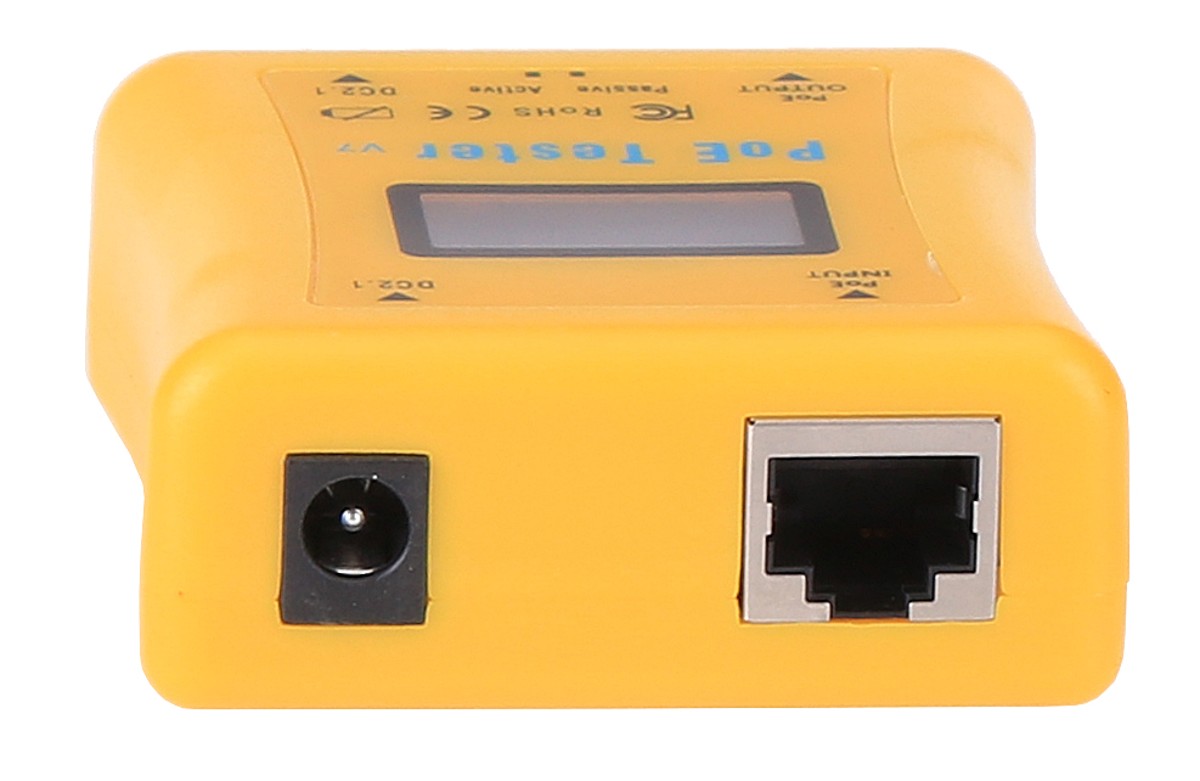

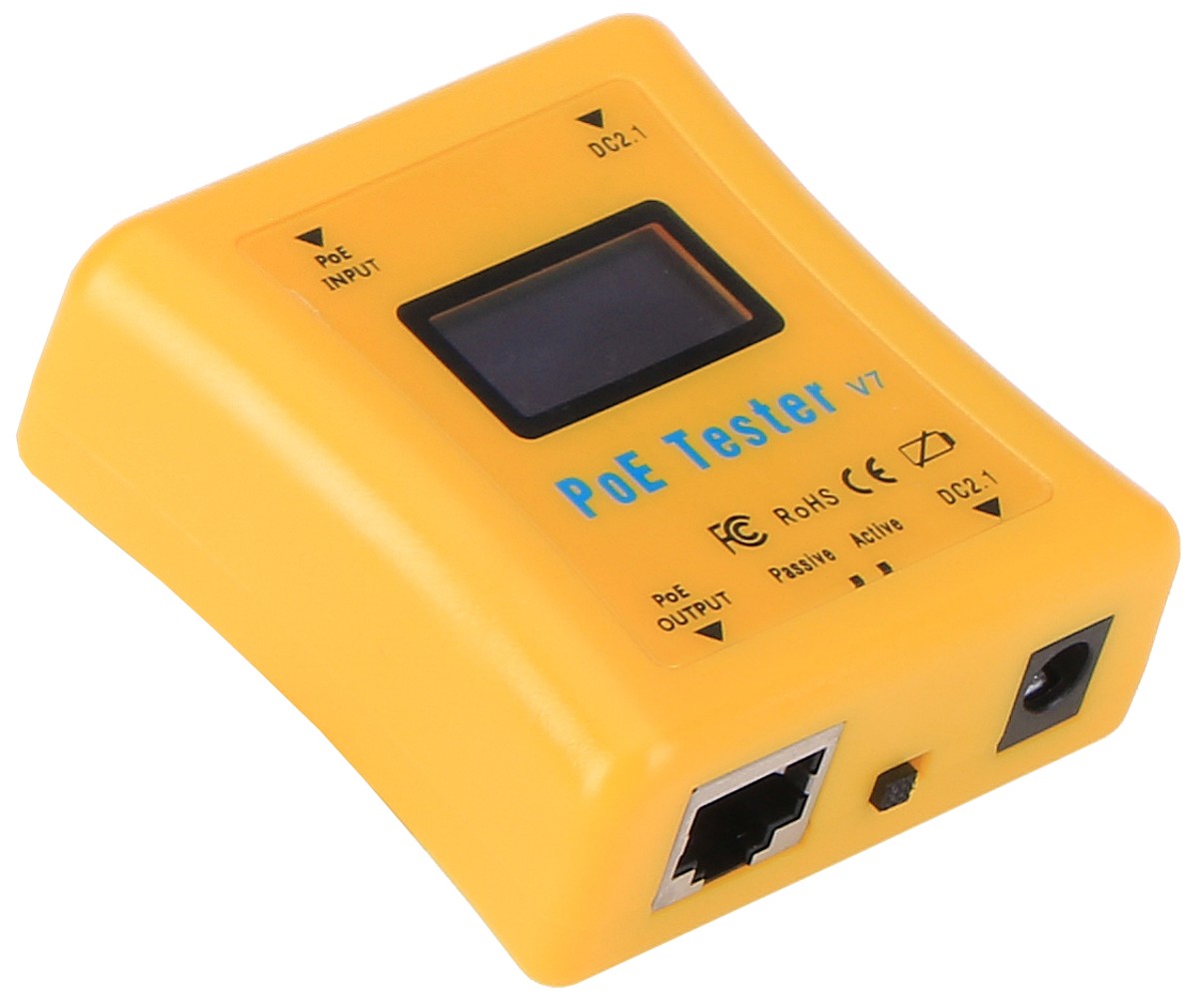

Practical pocket tester used for detection and measurement of values when powering over Ethernet cables - PoE. It allows measurement of voltage, current, powered pairs, detection of active 802.3af/at standard, passive PoE and testing of power adapters (7-56 V).
Features
- Determine the required power values of the connected active elements
- Check the available power values at the remote end of the connected active element

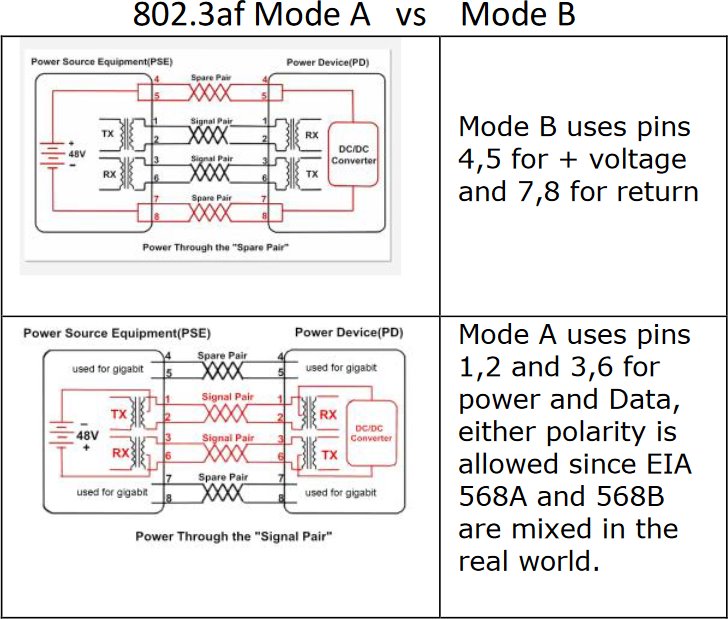

- Display of 4 - 56V power supply values in Mode A and B (A: pairs 1.2 + 3.6; B: pairs 4.5 + 7.8)
- Detect power outages on Ethernet cables
- Determining the value of the DC voltage at the input 3.5 - 57 V
- Using the 2.1mm jack input to determine current up to 5 A and voltage in 24, 48 and 56 V installations
- Cable reducer (male - male) 2.1mm/2.1mm included tester
- High brightness LED display
Current values
Mode A/Mode B: 0-1500 mA (2% accuracy above 5 mA); DC connector: 0-5 A (2% accuracy above 5 mA)
Display Limits
Up to 280 W with 56V/5A power supply
Power range
PoE: 4 - 56 V; DC: 3.5 - 57 V
Battery-free operation
Power supply via PoE input (minimum 4 mA input requirement)
