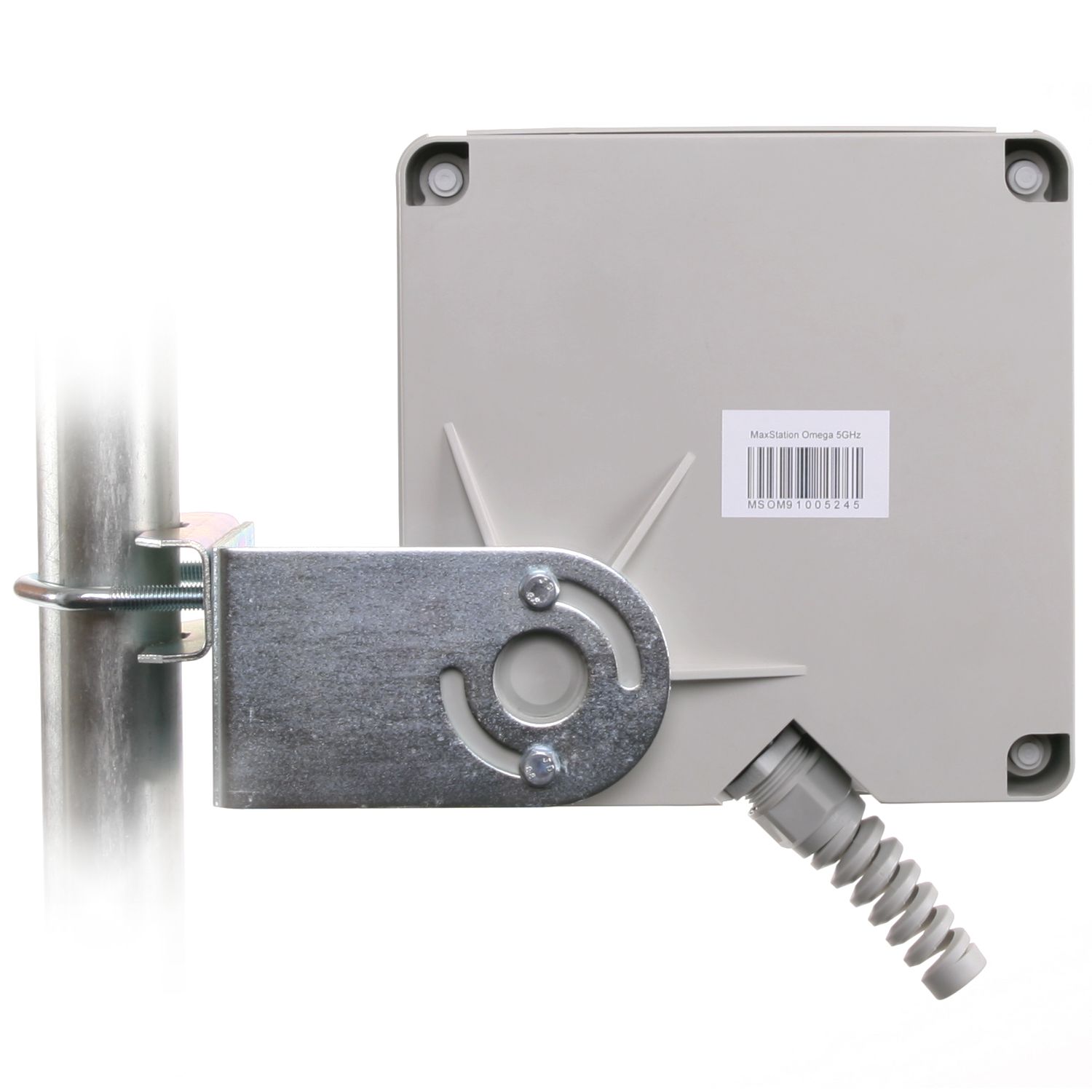

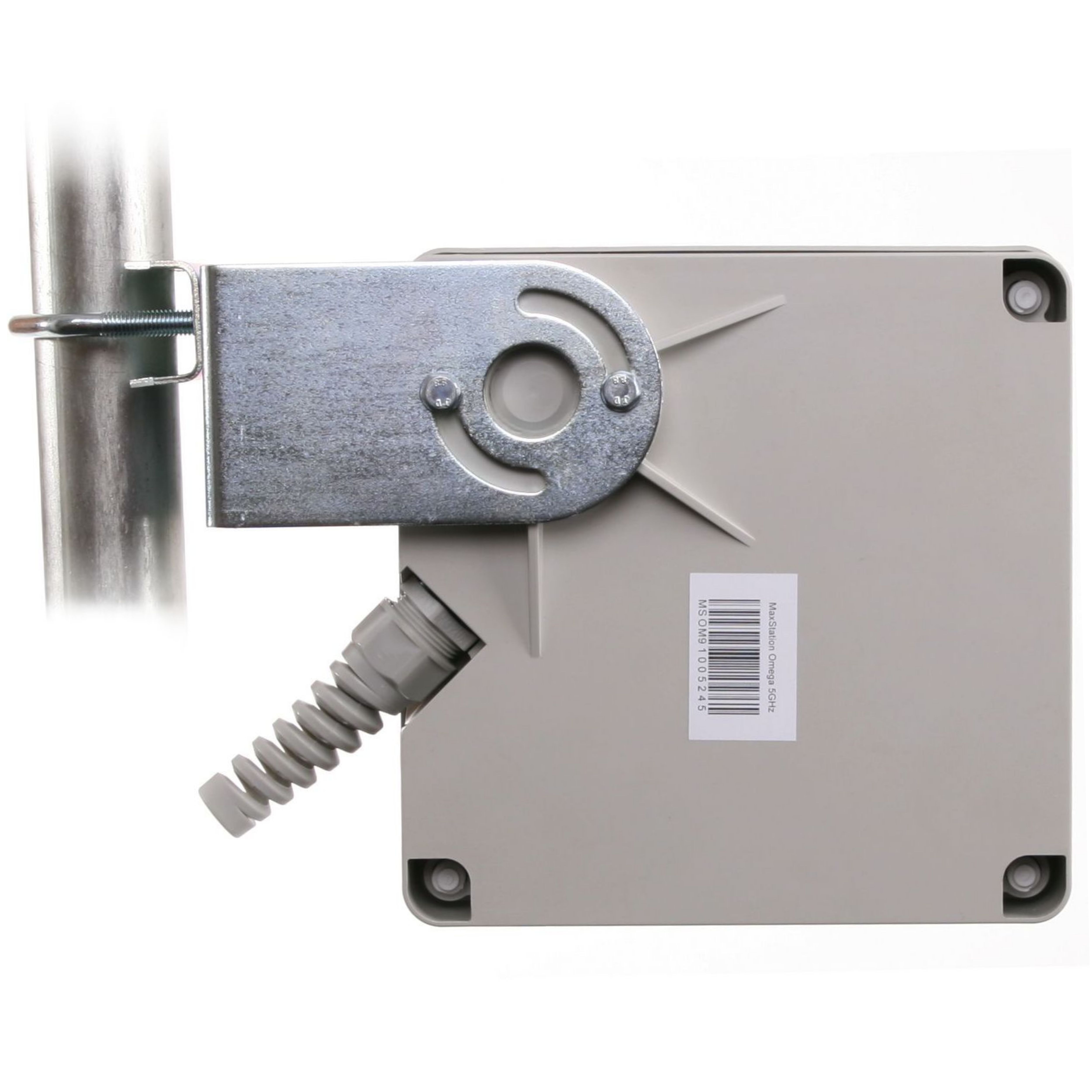

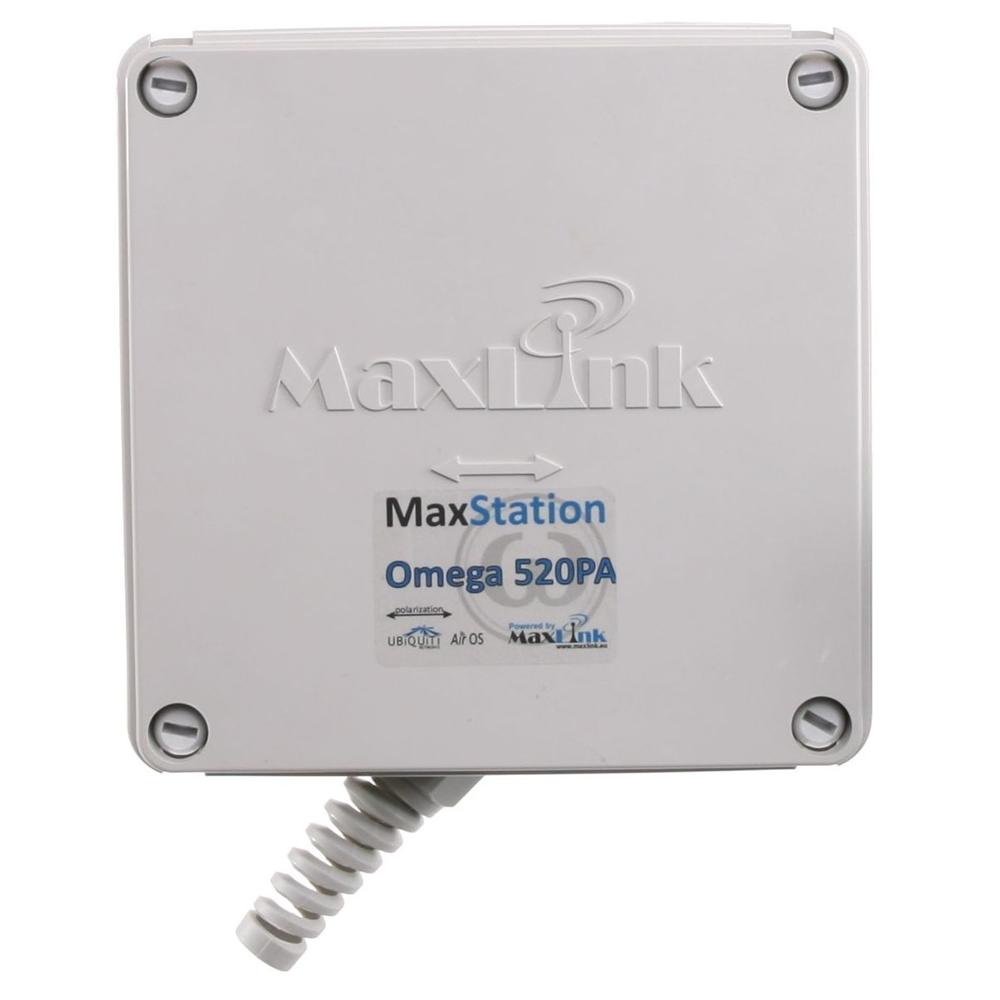

Unique outdoor client unit suitable for client stations and PTP wireless connections. The Omega unit consists of WispStation5 from Ubiquiti Networks and a MaxLink 20dBi 5GHz panel antenna. The platform is based on the Atheros chip AR2315 operating system AirOS. Power supply of the unit is possible only via Ethernet POE. Both the Ethernet port and the antenna port are protected by surge protectors. Real TCP / IP throughput over short distances between two MaxStation Omega units is 28 Mbps. Of course, there is 100% compatibility with the Mikrotik RouterOS system with throughput of 15 Mbps TCP and 28 Mbps on UDP compared to RB433. AirOS configuration is via a secure web interface (possibly also in Czech) the same as for other Ubiquiti units. The unit holder is designed to allow a very simple change of polarization just loosen the 2 screws to turn the unit and retighten, there is no need to disassemble the unit, rotate the antenna cover or disassemble the unit, simply mount and then select the polarization, also allows the antenna to rotate 45 ° in vertical direction. The product complies with FCC and CE, in the Czech Republic it is necessary to accept the VOR ČTU when used.
Web administration is very simple and clear. You can set, for example:
• AP, client or WDS mode
• traffic shaping
• QoS
• between WAN and LAN transparent bridge or routing, without NAT or with NAT
Package Contents
- Device itself
- PoE power supply
- Holder
