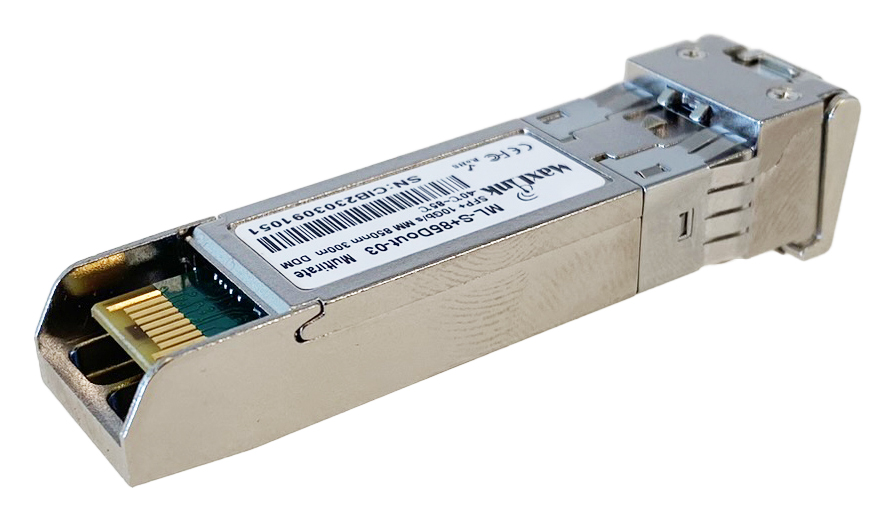

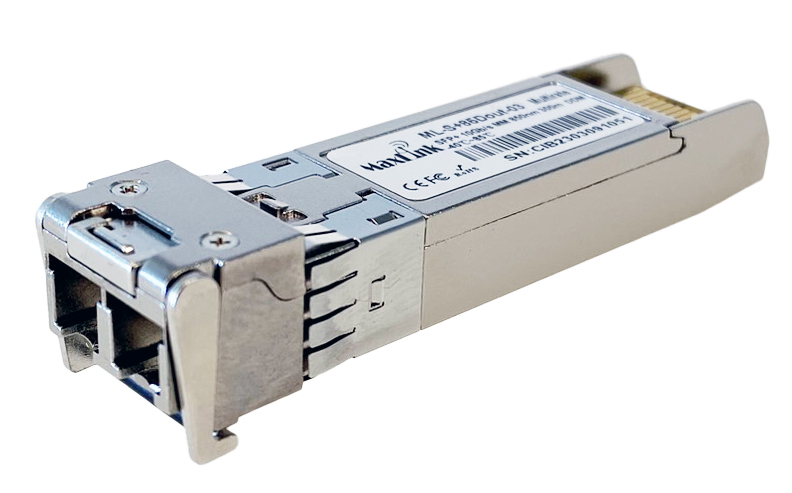

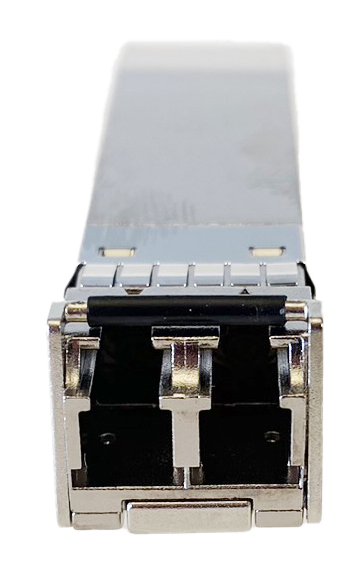

MaxLink 10G SFP+ optical module, MM, 850nm, 300m, industrial -40C+85C, 2x LC connector, DDM

ML-S+85Dout-03
ML-S+85Dout-03 is a multimode 10G SFP+ module with 850nm wavelength, two LC connectors, UPC grinding and is suitable for connection up to a distance of 300m. The module is "cisco compatibile" and is compatible with almost all active elements. The Industrial version of the SFP module differs from th... More information
To select 2 variants

Product description

ML-S+85Dout-03 is a multimode 10G SFP+ module with 850nm wavelength, two LC connectors, UPC grinding and is suitable for connection up to a distance of 300m. The module is "cisco compatibile" and is compatible with almost all active elements. The Industrial version of the SFP module differs from the normal one with better components and a better operating temperature range, which is from -40°C to +85°C.

Specifications

Optics

Format:SFP+
For cable type:Multi Mode
Transmission speed:10 Gbps
Wavelength - Tx/Rx [nm]:850
Distance [km]:0,3
Transfer type:2-fiber
Polishing type:UPC
Tx power [dBm]:-6 up to -1
Receiver sensitivity [dBm]:-11,1

Connectors and Interfaces

Optical Connectors:(2) LC

Physical characteristics

Operating temperature [°C]:-40 up to 85

General

Compatibility:Universal

Software

DDMI - diagnostics:Yes
